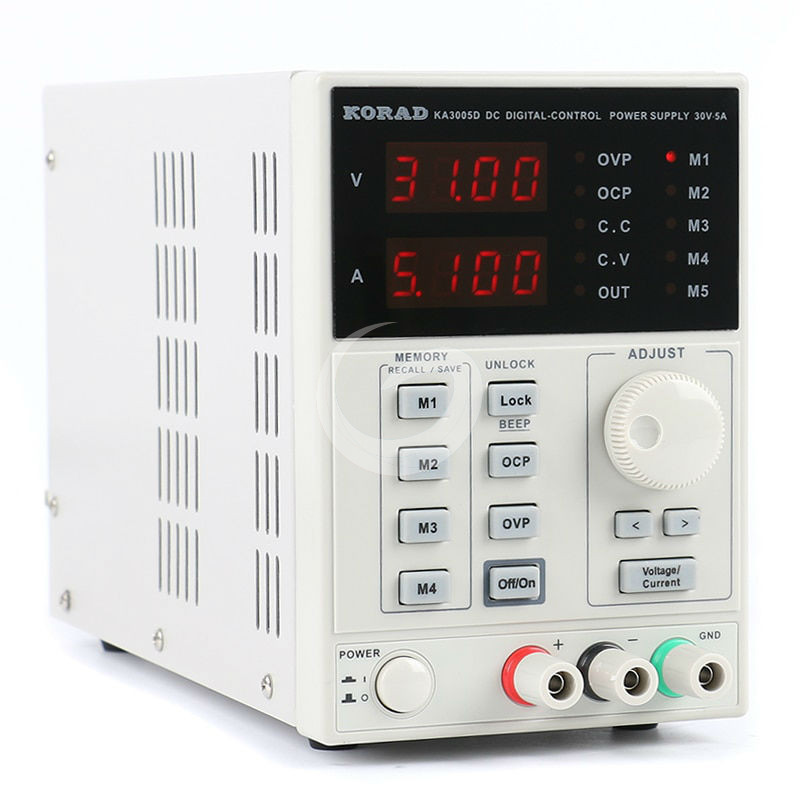

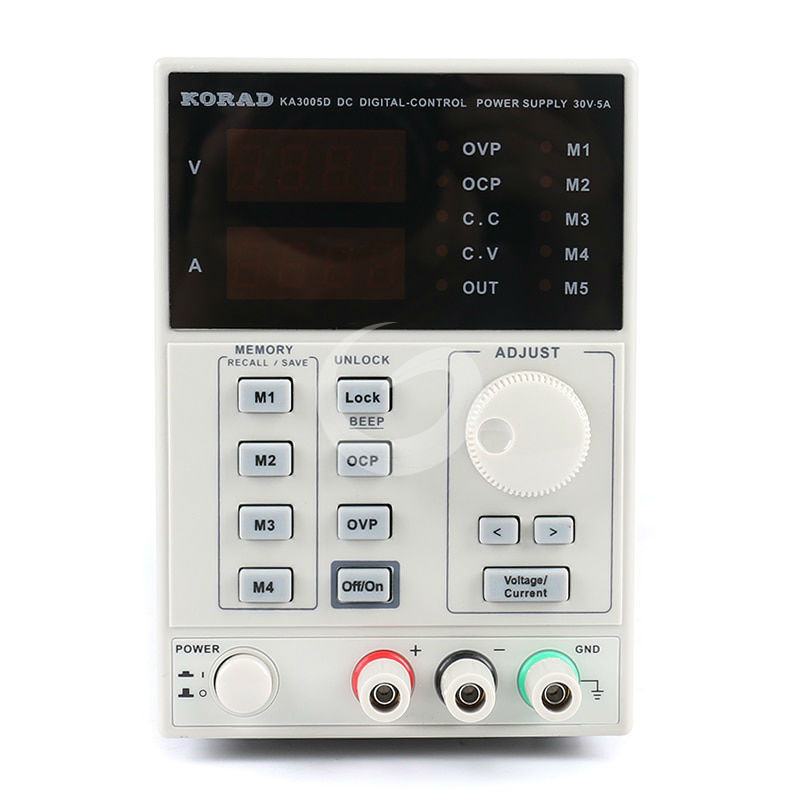

KORAD KA3005D Digital adjustable DC power supply programmable 30V 5A +

  • (0) Review

KORAD KA3005D Digital adjustable DC power supply programmable 30V 5A +


  • $58.95
  • Quantity Price
    1- 8 $58.95

Quantity

  • Add to Wishlist

Categories: PRODUCT CATEGORIES/ Power Supply

KORAD KA3005D Digital adjustable DC power supply programmable 30V 5A +

Features:

1. Full digital power control of
30V / 5A 2. 10mV / 1mA High precision and resolution
3. Low Noise and ripple
4. Voltage given CV / DC and constant current mode
5. High reliability protection OCP, OVP , set arbitrary
6. integrated set of saved parameters
7. emits a switch control
8. power and memory function
9 keypad lock to prevent misuse
10. intelligent temperature control fan, effectively reduces noise
11 Easy alternative to Traditional digital energy

Accurately generates the necessary voltages and currents.
Adjustable DC output of 0-30 V high precision.
Resolution of 10 mV and 1 mA.

Professional intuitive power supply design with operation!
Simple and intuitive operation, you can make a quick and accurate selection of voltage and current.

To prevent damage to the load
You can set the value of -Voltage protection and protection current to prevent the voltage regulator from beyond the threshold can
The buttons of the lock panel to avoid undesirable results in the test engineering of keys

5 user-programmable presets
You just have to press the button to remember and save the area a key to take the user out to store the data and save the user's settings.

Specification:

Operating conditions:
Input voltage: 220 V +/- 10%
Frequency range: 50-60Hz
Operating temperature: 32-104 (0-40 ° C)
Operating humidity: <80% RH
Storage temperature: 32- 158 (0-70 ° C)
Storage humidity: <70% RH

Stable
voltage: Output voltage range: 0-30 V continuously adjustable
Configuration resolution: 10 mV
Configuration accuracy: <0.05% + 20 mV
Ripple: < 1 mVRMS
Accuracy of reading: 10 mV
Temperature Coefficient: <0.1% + 10mV
Read temperature Coefficient:

Current stable:
Output current range: 0-5A continuously adjustable
Configuration resolution: 1 mA
Accuracy of configuration: <0.1% + 3 mA
Ripple:
precision: 1 mA
Coefficient temperature: <0.1% + 5mA
Read temperature Coefficient:
Dimensions: 4, 3x6,1x10,25 inches (110x156x260mm)

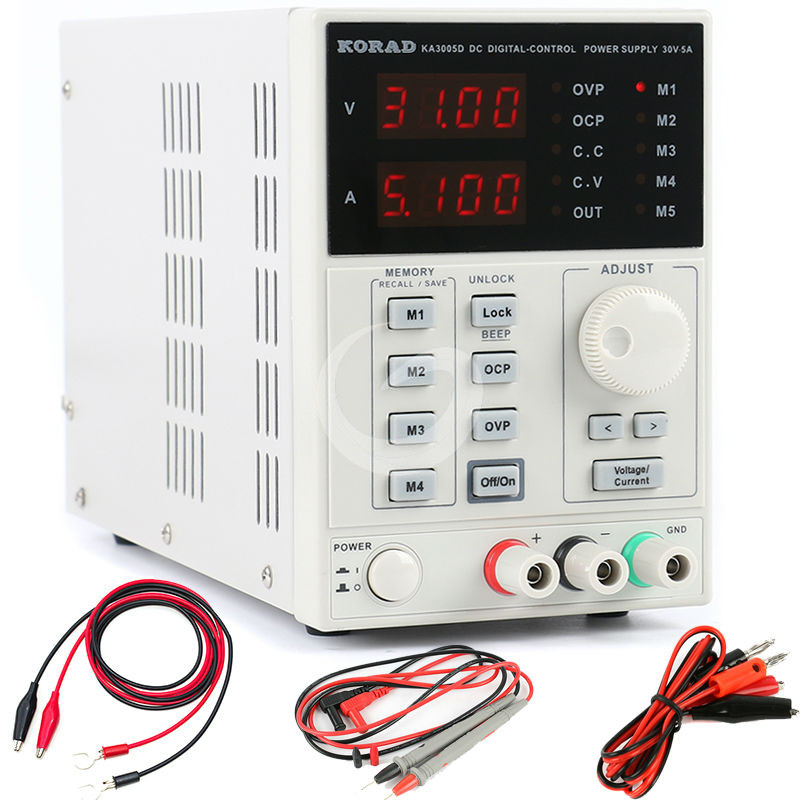

Package includes:

1 x KA3005D 0 ~ 30V 0 ~ 5A adjustable DC power supply
1 x test line
2 x probe
1 power line (EU / AU / US)
