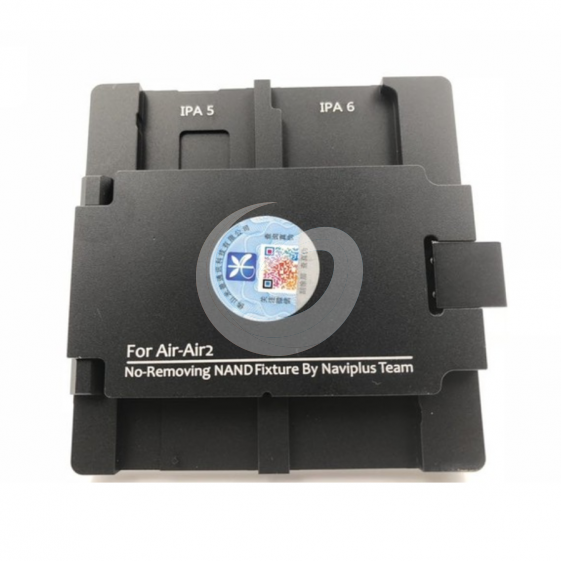

PRO3000S Programmer iPad 5 6 non-removal NAND Adapter Motherboard test fixture

  • (0) Review

PRO3000S Programmer iPad 5 6 non-removal NAND Adapter Motherboard test fixture


  • $115.00
  • Quantity Price
    1- 8 $115.00

Stock in hand: 0


Quantity

  • Add to Wishlist

Categories: Flash & Unlock/ Cables and Adapters/ Adapters

PRO3000S Programmer iPad 5 6 non-removal NAND Adaptor Motherboard test fixture Change Underlying Data Tool for ipad air 12

Product Introduciton:

2-IN-1 iPad 5 6 iCloud Unlock non-removal adapter for NAVIPLUS PRO3000S, iPad air 1 2 NAND un-removing adapter for fix Ipad 5 6 iCloud Activation Error, Avoid Remove nand from ipad 5 6 motherboard, change underlying data on NAND Flash: Serial Number (SN), Model, Area, Color on IPad 5 Air 1 / IPad 6 Air 2.

PRO3000S iPad 5 6 ICloud Unlock Adapter Avoid Remove NAND from PCB, fix icloud locked activation error.

Need upgarde your pro3000S machine to latest V1.1304:

https://drive.google.com/file/d/1Hu6ttinuflK6Pq9QCyXQ8vwboanssulh/view?usp=sharing



Can't supported NAND Flash List:

32G THGBX2G8D4JLA01
32G THGBX2G8B4JLA01
32G THGBX3G8D4KLA0C
32G H2JTEG8VD1CMS
64G THGBX4G9T4KLF0C

64G H2JTFG8PD1MMR


Features:

- Adop 28pin combination of double row, directly plug to work, convenient for assembly and disassembly
- Compatible with all the functions of Naviplus Pro3000s
- Reliable probe contact technology between logic board and test fixture
- Imported 0.1 inch 28 Pin double head interconnected probe
- Support all NAND chips from 16GB to 256GB
- The PCB transfer contact adopts thickened ZOZ craftwork, the contact is more durable.


Notes:

- The plastic shield of corresponding pad area in logic board must be removed;
- The pins between Pro3000s and test fixture should be accurately matched, otherwise, it won't work

User guide of PRO3000/Pro3000s iPad Air/Air2 NAND Non-removal test fixture:

1. Select the Pad5/6 un-removing option in configuration interface;
2. First click the 'Read' button, it must 'Read' successfully before 'Write' or 'Set/Write', it's not suggested to write the FW data from one logic board to the other logic board, the same logic board is suggested.
3. Now there are several NAND models are not supported by Air /Air2 non-removal NAND test fixture, and now we are analyzing the models below as possible as we can

PRO3000S Programmer iPad 5 6 non-removal NAND Adaptor Motherboard test fixture Change Underlying Data Tool for ipad air 12

Product Introduciton:

2-IN-1 iPad 5 6 iCloud Unlock non-removal adapter for NAVIPLUS PRO3000S, iPad air 1 2 NAND un-removing adapter for fix Ipad 5 6 iCloud Activation Error, Avoid Remove nand from ipad 5 6 motherboard, change underlying data on NAND Flash: Serial Number (SN), Model, Area, Color on IPad 5 Air 1 / IPad 6 Air 2.

PRO3000S iPad 5 6 ICloud Unlock Adapter Avoid Remove NAND from PCB, fix icloud locked activation error.

Need upgarde your pro3000S machine to latest V1.1304:

https://drive.google.com/file/d/1Hu6ttinuflK6Pq9QCyXQ8vwboanssulh/view?usp=sharing



Can't supported NAND Flash List:

32G THGBX2G8D4JLA01
32G THGBX2G8B4JLA01
32G THGBX3G8D4KLA0C
32G H2JTEG8VD1CMS
64G THGBX4G9T4KLF0C

64G H2JTFG8PD1MMR


Features:

- Adop 28pin combination of double row, directly plug to work, convenient for assembly and disassembly
- Compatible with all the functions of Naviplus Pro3000s
- Reliable probe contact technology between logic board and test fixture
- Imported 0.1 inch 28 Pin double head interconnected probe
- Support all NAND chips from 16GB to 256GB
- The PCB transfer contact adopts thickened ZOZ craftwork, the contact is more durable.


Notes:

- The plastic shield of corresponding pad area in logic board must be removed;
- The pins between Pro3000s and test fixture should be accurately matched, otherwise, it won't work

User guide of PRO3000/Pro3000s iPad Air/Air2 NAND Non-removal test fixture:

1. Select the Pad5/6 un-removing option in configuration interface;
2. First click the 'Read' button, it must 'Read' successfully before 'Write' or 'Set/Write', it's not suggested to write the FW data from one logic board to the other logic board, the same logic board is suggested.
3. Now there are several NAND models are not supported by Air /Air2 non-removal NAND test fixture, and now we are analyzing the models below as possible as we can
