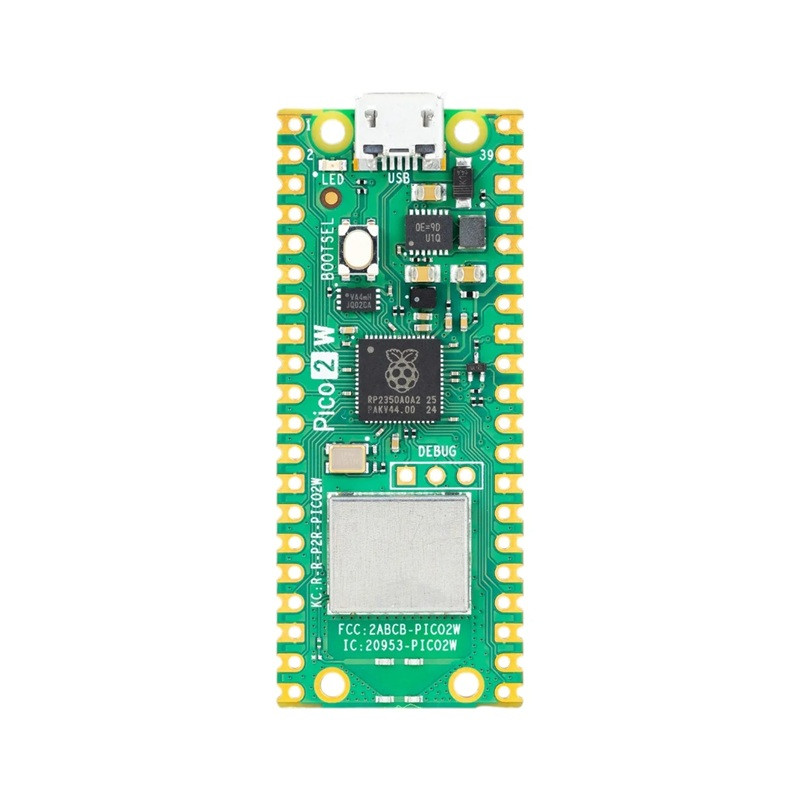

Raspberry Pi Pico 2W Dual-Core Mini Development Board Supports WiFi & Bluetooth Communication Features RP2350 Chip

Overview:

• The Raspberry Pi Pico 2W is a low-cost, high-performance microcontroller development board with flexibledigital interfaces. lt features upgraded wireless communication hardware, an on-board antenna, and supports 2.4GHz 802.11n WiFi and Bluetooth 5.2, making it a wireless-enabled upgrade of the Pico 2.

Features:

• Uses the RP2350 microcontroller chip, designed in-house by Raspberry Pi

• Unique dual-core, dual-architecture design: dual-core ARM Cortex-M33 processors and dual-core Hazard 3 RISC-V processors, both running at up to 150MHz with flexible clocking

• Incorporates Infineon's CYW43439 wireless chip, supporting Wi-fi 4 and Bluetooth 5.2

• 520KB of on-chip SRAM and 4MB of on-board Flash memory

• castellated edge design for direct soldering onto custom baseboards

• USB 1.1 host and device support

• Low-power sleep and dormant modes

• Drag-and-drop program loading via USB mass storage emulation

• Up to 26 multifunction GPlO pins

• 2 x SPl, 2 x 12C,2 x UART, 3 x 12-bit ADCs, and 16 controllable PWM channels

• Integrated temperature sensor

• 12 programmable l/O (PIO) state machines for custom peripheral support

Specification:

• Model: Pico 2W

• Processor: Dual-core ARM Cortex-M33 dual-core Hazard 3 RISC-V @150MHz

• SRAM: 520KB

• Flash: 4MB

• Wi-Fi: 2.4GHz 802.11n WiFi 4

• Bluetooth: Bluetooth 5.2

• Security features: Boot signature, otp store for decryption, and hardware SHA-256 accelerator, etc

• 2 × UART

• 2 × SPI controllers

• 2 × I2C controllers

• 24 × PWM channels

• 3 x ADC channels

• 1 × USB 1.1 controller and PHY, with host and device support

• 12 × PIO state machines

• 1 x HSTX

• GPIO pins: 26

Package includes:

• 1 x Raspberry Pi Pico 2W
