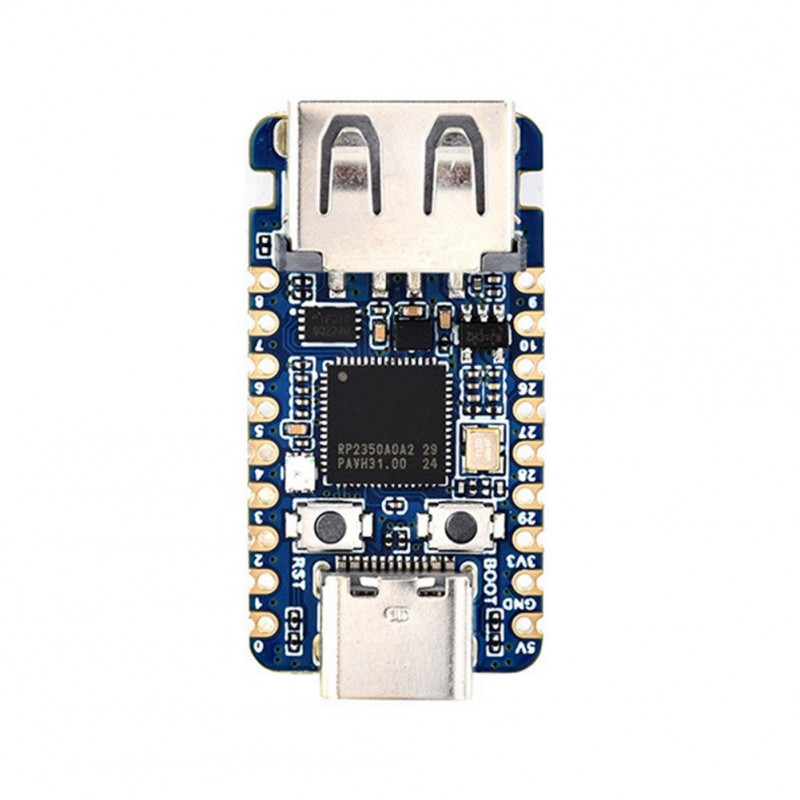

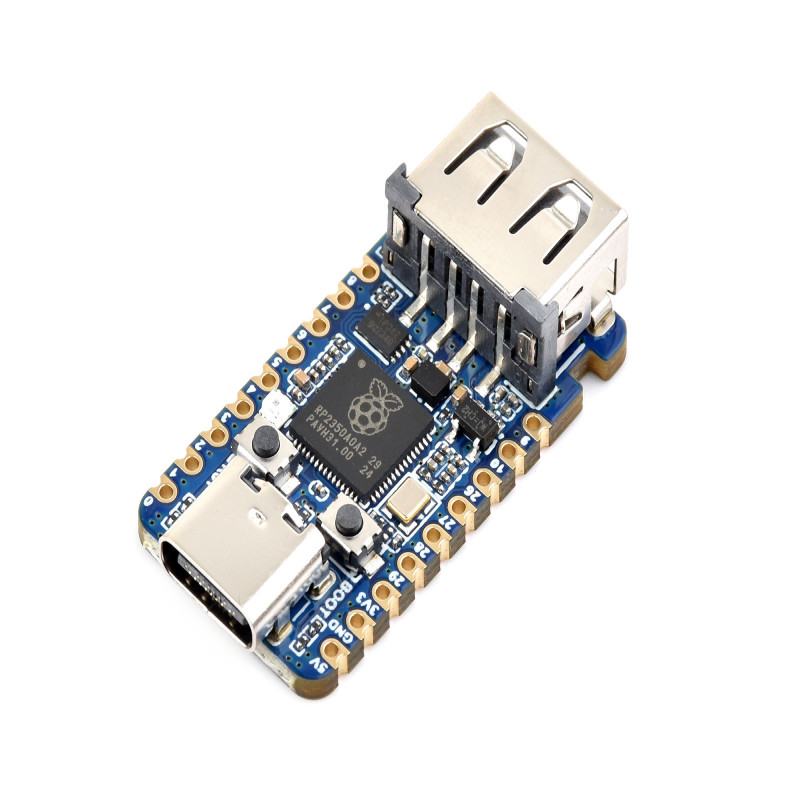

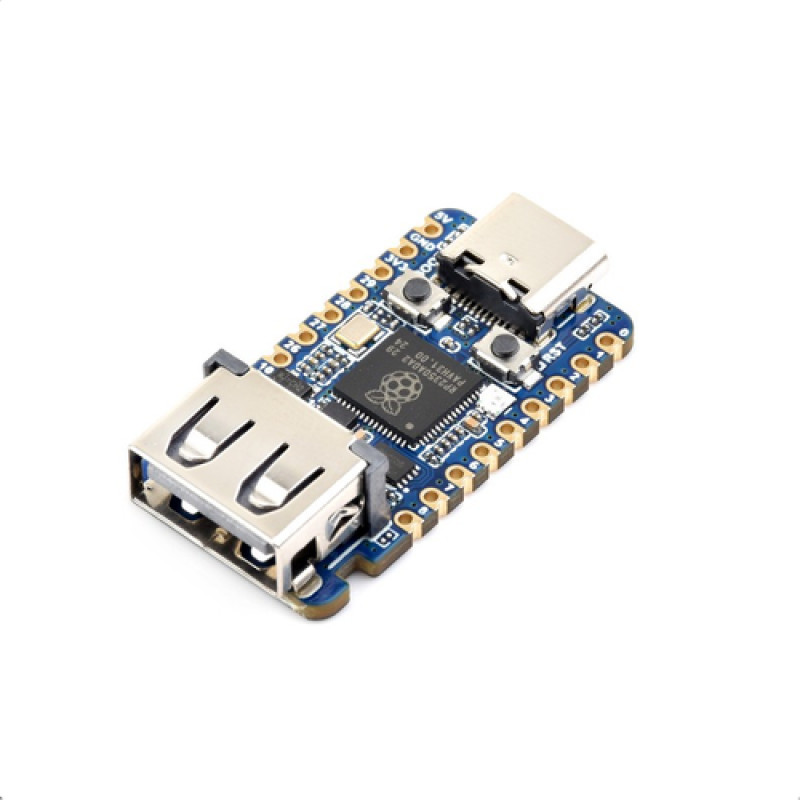

RP2350-USB-A Mini Development Board with USB Port Based on Raspberry Pi RP2350A

Features:

• Utilises the RP2350A microcontroller chip, designed in-house by Raspberry Pi

• Features a unique dual-core, dual-architecture design, incorporating a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock speed of up to 150MHz

• Includes 520KB of SRAM and 2MB of on-chip Flash

• Features a Type-C interface, keeping pace with the latest trends and eliminating the need to worry about which way round to plug it in

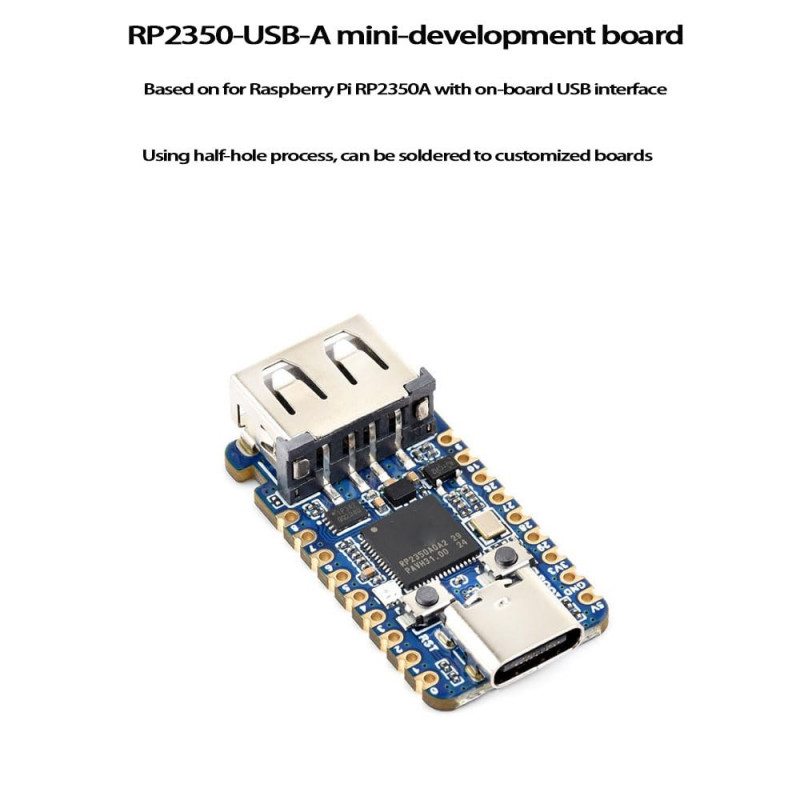

• Stamp-hole design allows direct soldering onto a user-designed backplane

• USB 1.1 host and device support

• One on-board USB expansion port, compatible with USB 2.0/1.1 data transfer

• Supports low-power sleep and hibernation modes

• Can be recognised via USB as a mass storage device for drag-and-drop downloads

• 15 GPIO pins of the RP2350A are exposed

• 2 SPI, 2 I²C, 2 UART, 4 12-bit ADCs, and 14 controllable PWM channels

• Precise on-chip clock and timers

• Built-in temperature sensor and on-chip accelerated floating-point library

• 12 programmable I/O (PIO) state machines for custom peripheral support

Package includes:

• 1 x Development Board
