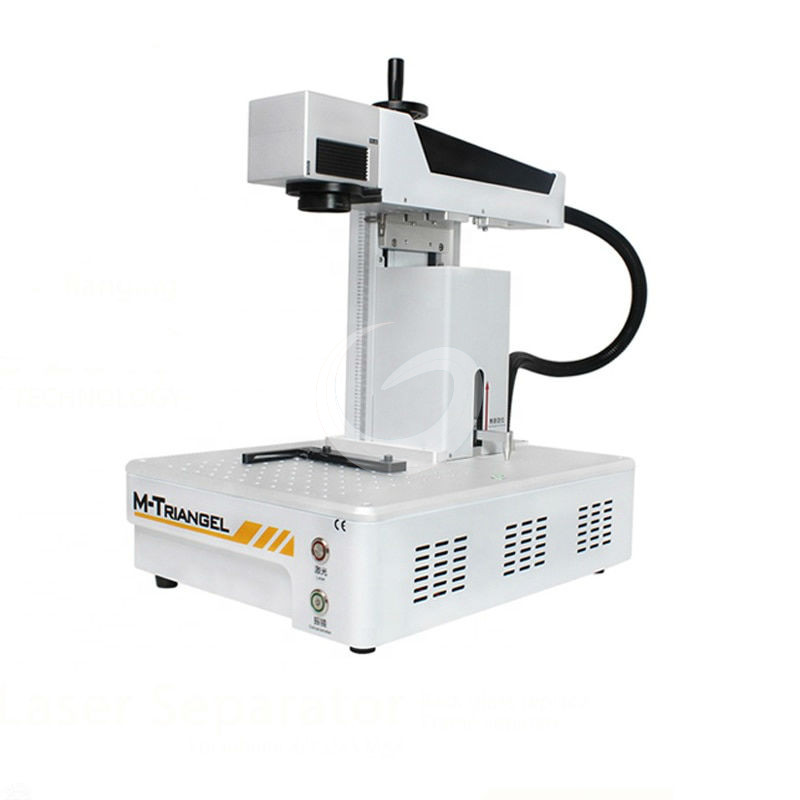

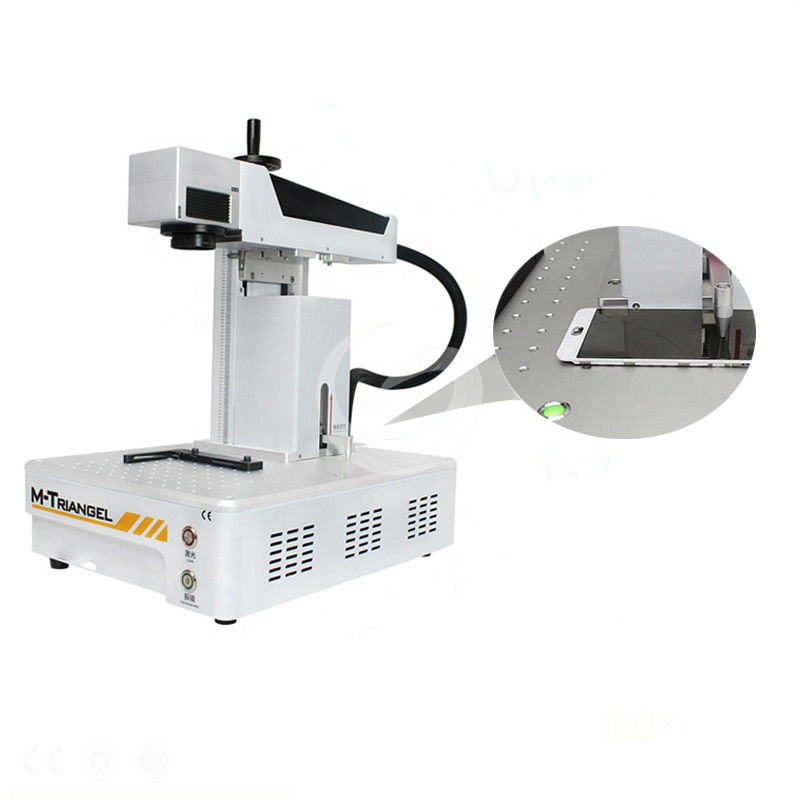

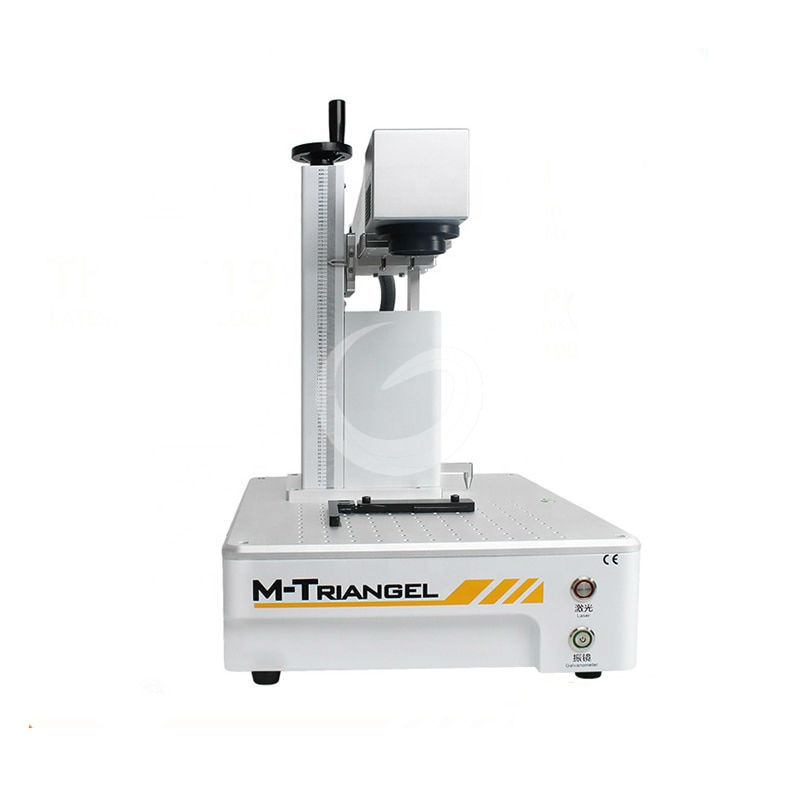

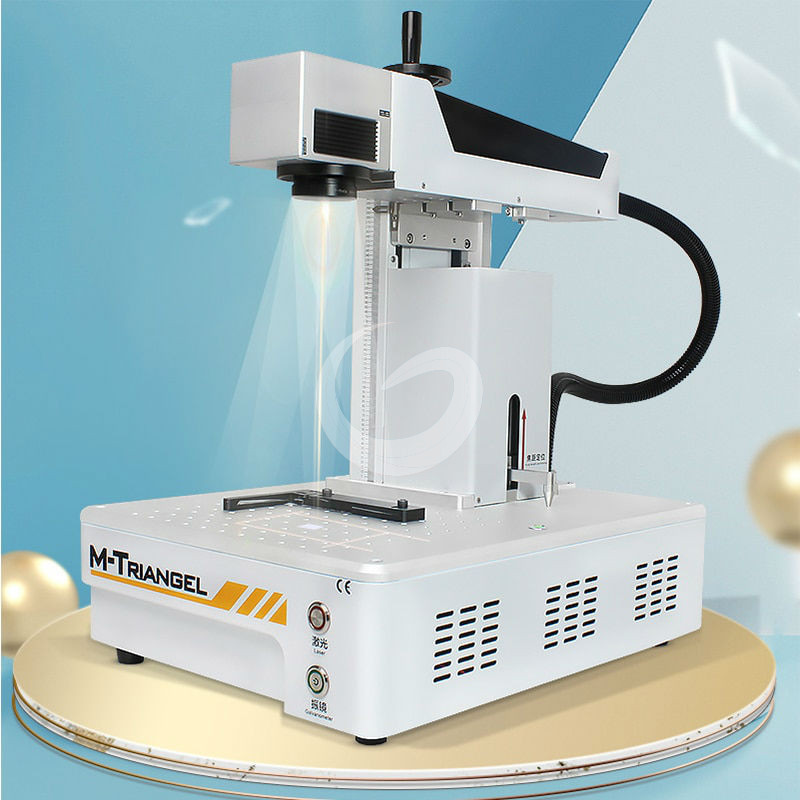

M-Triangel 2019 Fiber Laser Separating Machine Laser Marking Machine For iPhoneX XS Max 8 8+ Back Glass Remover

  • (0) Review

M-Triangel 2019 Fiber Laser Separating Machine Laser Marking Machine For iPhoneX XS Max 8 8+ Back Glass Remover LCD Glass Frame Repair


  • $1,549.00
  • Quantity Price
    1- 8 $1,549.00

Product is In Stock

Quantity

  • Add to Wishlist

Categories: CNC Machines

M-Triangel 2019 Fiber Laser Separating Machine Laser Marking Machine For iPhoneX XS Max 8 8+ Back Glass Remover LCD Glass Frame Repair

Parameters:

Product Name
Laser Separating Machine
Model
MT-BY2
Laser power
20W
Machine power
≤ 800W
Marking speed
≤10000mm/s
Marking power
≤0.001MM

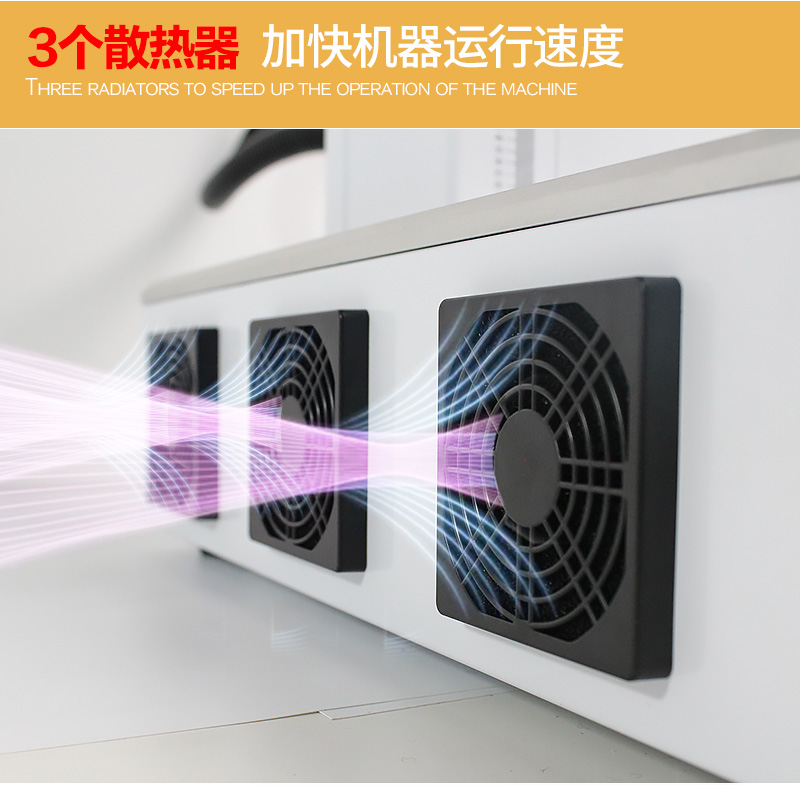

Cooling method
built-in air cooling
Laser wavelength
1.06μm
Laser equipment size
400*520*635mm
Power supply
220V ± 10%, 50HZ ± 5%
Ambient temperature
-10 ° C ~ 65 ° C
Repeatability
≤0.001mm
Marking depth
0.015-0.5mm
Marking range
175*175mm
Marking line width
0.05-0.01mm
Equipment weight
32kg
Packing Size
750*520*655mm
Gross weight
48kg



Function:

1. 1)Laser Machine for Midframe/Bezel/Back glass Separate;

    2)Marking/Engraving

2.Technology Upgrading----Intelligent Ranging System

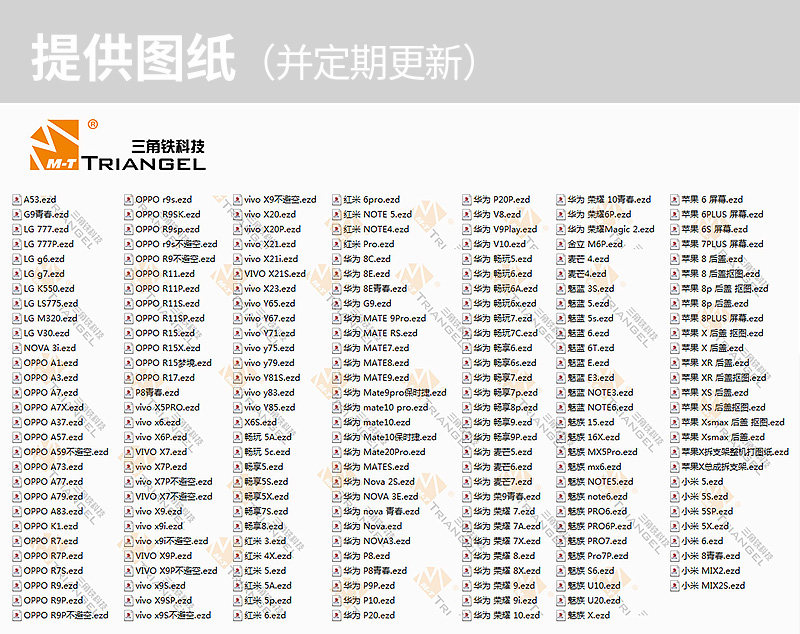

3. Easy operation, Come with Software and drawings(Continuous updating...)

4. Suitable for all touch screen smart phones Laser Repair in the market: for IPhone, Huawei, XiaoMi,OPPO,vivo,LG
