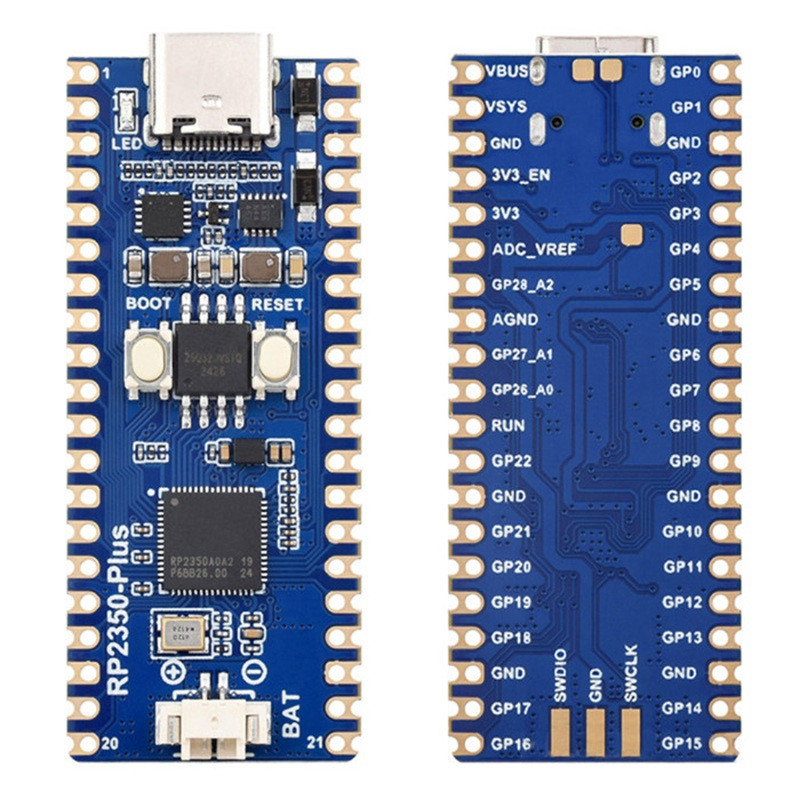

RP2350-Plus Development Board Equipped with Raspberry Pi RP2350A Microcontroller Chip

Features:

• This upgraded version of the RP2350 microcontroller is based on the RP2350A and is compatible with most Pi Pico modules.

• It is equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, running at a frequency of up to 150 MHz.

• 26 multi-function GPIO pins, supporting configuration pin functions, which can be easily and flexibly developed and integrated.

• Small size, 51mm*21mm, small and easy to integrate.

• Based on the RP2350 mini development board, it is an enhanced version of Pi Pico 2. On the basis of being compatible with most Pi Pico 2 modules, it enhances or adds some additional functions.

Specifications:

• Using RP2350A microcontroller chip

• Unique dual-core, dual-architecture design, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock running frequency up to 150MHz

• Built-in 520KB SRAM and 4MB on-chip Flash

• Using Type-C interface, keeping up with the trend of the times, no need to worry about whether to insert it forward or backward

• Onboard lithium battery charging and discharging interface, which is conducive to the use of this product in mobile scenarios

• Onboard DC-DC chip MP28164, a high-efficiency DC-DC buck-boost chip, with a load current of up to 2A

• Stamp hole design, can be directly welded and integrated into the baseboard designed by the user

• USB1.1 host and device support

• Support low-power sleep and hibernation modes

• Can be identified as a large-capacity storage through USB for drag-and-drop download

• Up to 26 multi-function GPIO pins

• 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 16 Controllable PWM channels

• Accurate on-chip clock and timer

• Built-in temperature sensor

• On-chip accelerated floating-point library

• 12 programmable I/O (PIO) state machines for custom peripheral support

• Size 51mm*21mm, compact and easy to integrate

Product includes:

• 1 x Development Board
