KD3005D DC Encoder Adjustable CNC Power Supply 30V 5A Constant Voltage Constant Current Source mA Display 10mV/1mA Accuracy

  • (0) Review

KD3005D DC Encoder Adjustable CNC Power Supply 30V 5A Constant Voltage Constant Current Source mA Display 10mV/1mA Accuracy


  • $60.61
  • Quantity Price
    1- 8 $60.61

Stock in hand: 0


Quantity

  • Add to Wishlist

Categories: Mobile Repair Equipment/ Power Supply

Operating Conditions:
Input voltage: 220V  +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 F  (0-40 ºC)
Operating humidity: < 80%RH
Storage temperature: 32-158 F  (0-70 ºC)
Storage humidity: < 70%RH


Stable Voltage:
Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10 mV
Setup Accuracy: <0.05% +20 mV
Ripple: < 1mVRMS
Read back Accuracy: 10 mV
Temp. Coefficient: < 0.1% + 10mV
Read back Temp. Coefficient: < 100 ppm+10 mV

Stable Current:
Output Current Range: 0-5A  Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: <0.1% +3 mA
Ripple: < 3mARMS
Read back Accuracy: 1 mA
Temp. Coefficient: < 0.1% + 5mA
Read back Temp. Coefficient: < 100 ppm+5 mA

Weight: 9.5 lbs. (4.3 Kg)
Dimensions: 4.3 x 6.1 x 10.25 inches  (110 x 156 x 260mm)

Package includes :

1 x KD3005D 0~30V 0~5A Adjustable DC Power Supply
1 x  User Manual
1 x  Test line
2 x  Test line clamp
2 x  Probe
1 x  Power line(EU/AU/US)
1 x  DC Jack Set
2 x  Phone Repair Power Line

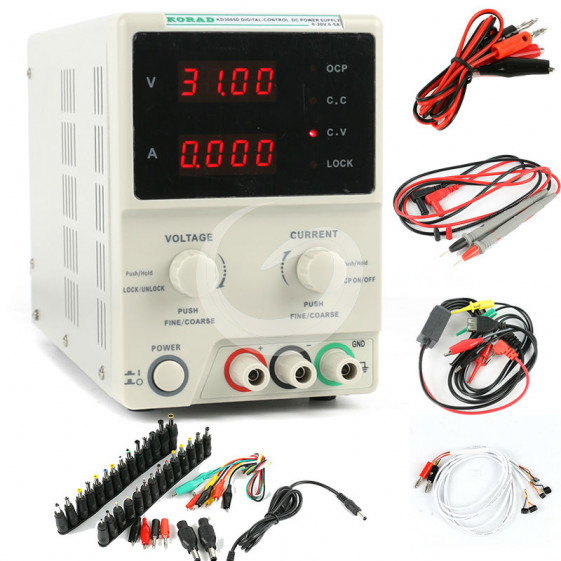

power supply
front view

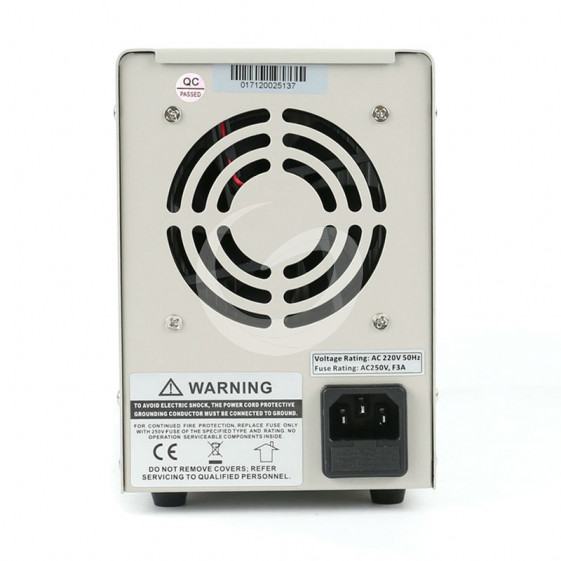

back view
up

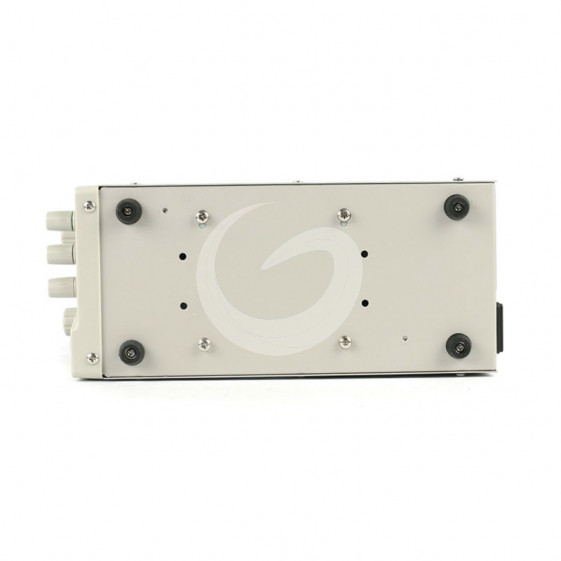

down
