Irework SMD Solder Station for iPhone X XS MAX PCB Motherboard layering Circuit Board Rework Heating Platform Phone Repair Tool
Irework SMD Solder Station for iPhone X XS MAX PCB Motherboard layering Circuit Board Rework Heating Platform Phone Repair Tool
- $282.82
-
Quantity Price 1- $282.82
Product is In Stock
Quantity
Categories: PRODUCT CATEGORIES/ Repairing Tools
Irework Station SMD Solder Station for iPhone X XS MAX PCB Motherboard layering Circuit
Board Rework Heating Platform Phone Repair Tools
Features:
iREWORK is using the new heat conduction technology, this is the leading transfer heat method which guaranty to the customer The best quality alongside the utmost safety. iREWORK is the best professional toolkit for your electronic hardware repair needs. It offers many indispensable functions and makes working in a professional repair shop much more easy.
Product Description:
All functions are finely controlled using our custom made software control system with real time data display
General settings and operating ambient temperature ranges can be programmed using our software in order to work with or without computer
Has 4 integrated temperature sensors (internal temperature, heater temperature, external temperature and real time temperature tester K Type sensor)
The heating system has automatic temperature control that can keeping temperature constant and accurate while you work
An integrated 0.96" OLED that can display all necessary data including state, temperature and voltages
A built in temperature tester function that can accurately and efficiently measure solder iron and hot air temperature (Measurement range: -125 - 1200 ℃, Tolerance: ± 1 ℃) in real time . This way you can be sure your rework tools are correctly calibrated and working at peak performance
Heating plate made from high purity copper with an efficient method for high heat flux design
Wide plate made from aluminum can separating glass etc(Compatible size for 13 inch and below)
With Wide plate can use for baking、drying、aging etc (Eg.water-flooded components of UMT mainboard)
Almost all current PCB integrated circuits can be soldered and de-soldered without the need of a soldering iron or a hot air gun. (Eg,Apple A7 A8 A9 A10 A11 A12 CPU 、baseband IC or harddisk IC etc)
Can act as a pre-heater for your everyday needs to minimize the risk of component damage
Smart phones, iPad products's glass lens, touch screens & LCD displays can be separated in a few mins
Default factory settings with general working conditions specification (Eg. Glue remove、
Product Describtion:
1. The real-time data display of all functions can be precisely controlled by the software dedicated to JOVY IREWORK.
2. Temperature range The software program can run with or without a computer.
3. Highly integrated 4 temperature sensors (internal sensor, heating sensor, extended temperature sensor and instant K-type temperature sensor)
4. The heating section in the working state has an automatic temperature control system to keep the temperature constant and ensure accuracy.
5. The digital tube can display all necessary data, such as: working status, temperature and voltage
6. The temperature measurement function can accurately and quickly measure the real-time temperature of the soldering iron and the heat gun (detection range: -125-1200 degrees, tolerance: plus or minus 1 degree) to ensure accurate calibration during use. Efficiency is maximized.
7. The heating A plate is made of high-density pure copper. The high heat flow density aperture curve published design improves the high heat conversion performance and effectively controls the heat flow loss.
8. The heated B-plate is made of aerospace aluminum, which effectively enhances the heat treatment performance and improves the working efficiency when the screen is separated (applicable size 13 inches and below)
9. By heating the B plate, it can be used for baking, drying, aging test, etc. (such as electronic components soaked in water on UMT motherboard)
10. Supports the current implementation of almost all integrated circuit PCB components without the need for soldering iron or heat gun support for soldering and desoldering. (eg, A7 A8 A9 A10 CPU, baseband IC or hard disk, etc.)
11. Can be used as a daily warm-up platform to minimize the risk of damage to components during the soldering process.
12. The glass, touch or LCD of smartphones and tablet electronics can be separated in minutes.
13. Factory mode includes normal operation settings by default (eg, glue removal, CPU, IC soldering and desoldering, glass & touch or LCD separation temperature settings, etc.)
14. All operability functions can be customized and operated by the user.
15. The device itself integrates the automatic reset function of overheat protection.
16. The device itself integrates voltage overload protection
17. The device itself integrates an automatic LED alarm prompt voice prompt
18. The device itself has short circuit detection protection
19. The device itself integrates automatic sleep function
20. Lifetime free software upgrades, etc.

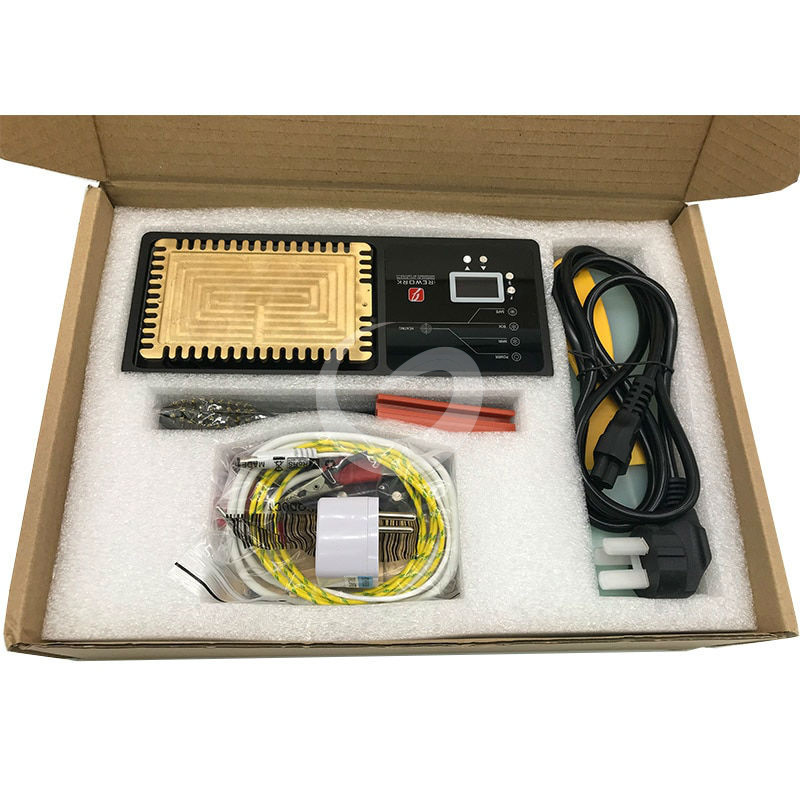

Package List:
1 x iREWORK BOX
1 x Universal PCB holder(PCB fixture)4 x M2*6 Screws
1 x Wide plate
1 x Silicone Protective pad
1 x ESP cable
2 x Plastic Prying Tools
3 x Anti-static Spudger Tools
3 x Dual head Metal Carbon steel
4 x Plastic guitar picks
1 x Scaper (Yellow Color)
1 x Cleaning Brush
1 x Power Cable
1 x Ground cable
1 x AB USB Cable
Irework SMD Solder Station for iPhone X XS MAX PCB Motherboard layering Circuit Board Rework Heating Platform Phone Repair Tool
