Industrial Microscope 4K High-definition Camera Connected to a Computer HDMI and UVC Synchronized Output

Features:

• The camera uses an HDMI cable to connect to a high-definition display, and realizes image capture or recording through a TF card

• High-definition HDMI 4K@30FPS standard CS interface camera, using sony high-definition high-sensitivity CMOS sensor.

• Built-in remote control remote menu operation

• HDMI and type-c UVC synchronous output



Specification:

• Model: KP-3609A4K

• SENSOR: IMX334

• Sensor size 1/1.8

• Pixel size: 2.0*2.0μm

• Output resolution: 3840*2160

• Frame rate: 3840*2160@30FPS; 1920*1080@120FPS&60FPS

• Image storage method: TF card + UVC

• Video: 3840*2160@30FPS

• Exposure time: 0~33ms

• Exposure: automatic/manual

• White balance: automatic/manual/one key

• Color: standard, black, tan

• Mirror settings: horizontal + vertical, horizontal mirroring, vertical mirroring

• Gridline: support 10 groups of horizontal and vertical lines, optional colors (blue, orange, transparent, black, white, red, green), the line can be moved, and the line width can be set

• Image: Support 16:9, 4:3

• Scale line: mm, um, inch, mil, cm can be set

• PC software: KOPPACE-VIEW (support photo, video, measurement)

• Working temperature: 0~60℃

• Storage temperature: -20~85℃

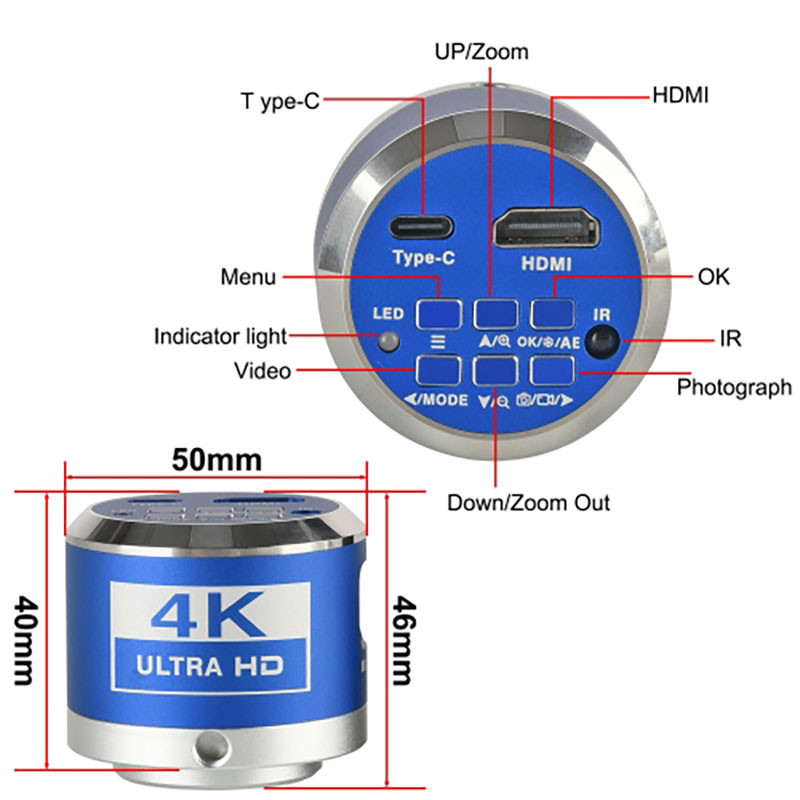

• Appearance size: 50*40*46mm

• Stand-alone weight: 0.11kg (approximately)

• Power supply: DC 5-12V



Package includes:

• 1 x 4K HD camera

• 1 x HDMI high-definition cable

• 1 x Type-c data cable

• 1 x Remote control
