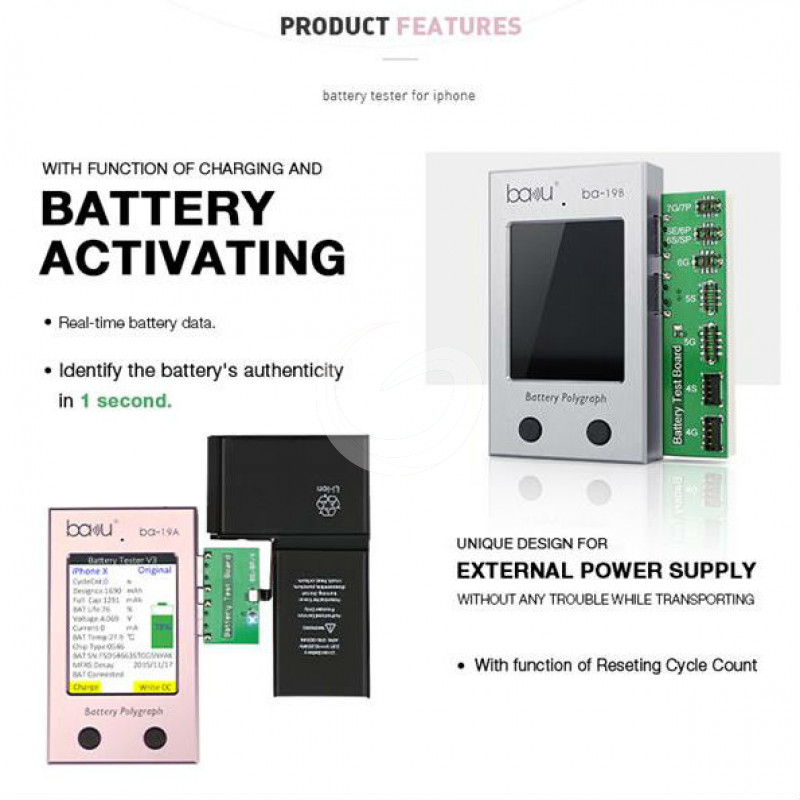

- One second to identify the authenticity of the battery.
- Real-time battery data; Charging and battery activation.
- The number of cycles is cleared. External power supply design. (Original design, with built-in power supply and without power 2 specifications)
- Automatically read the battery information, the battery a key clear, check the battery cycle, the battery a key activation, support Apple full range of battery charging

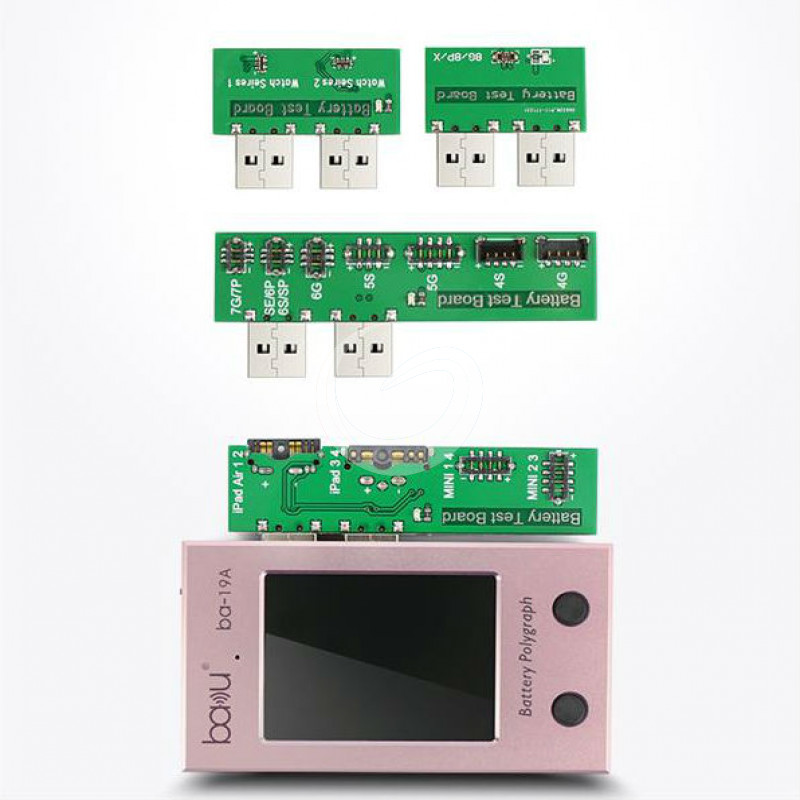

- Having 4 battery Test Board : 1> 8G , 8P , X; 2> Watch Series 1 , Watch Series 2; 3> iPad Air 1 2 , iPad 3 4 , MINI 1 4 , MINI 2 3 4> 7G / 7P , SE / 6P / 6S / SP , 6G , 5S , 5G , 4S ,4G; 1 activation board: 7G / 7P, SE / 6P / 6S / 6SP, 6G, 5S / 5C, 5G, 4S, 4G.

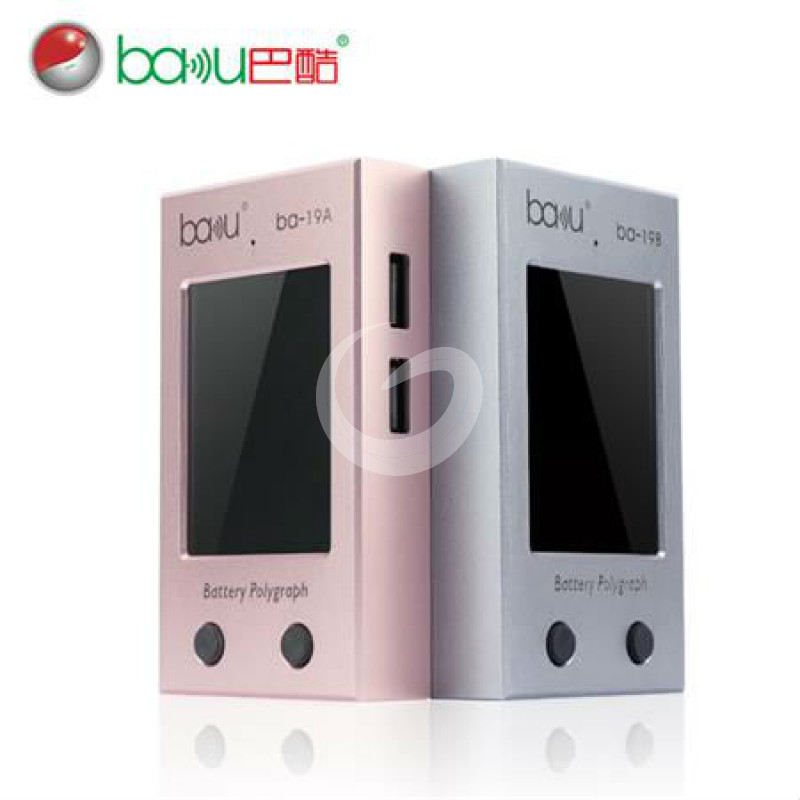

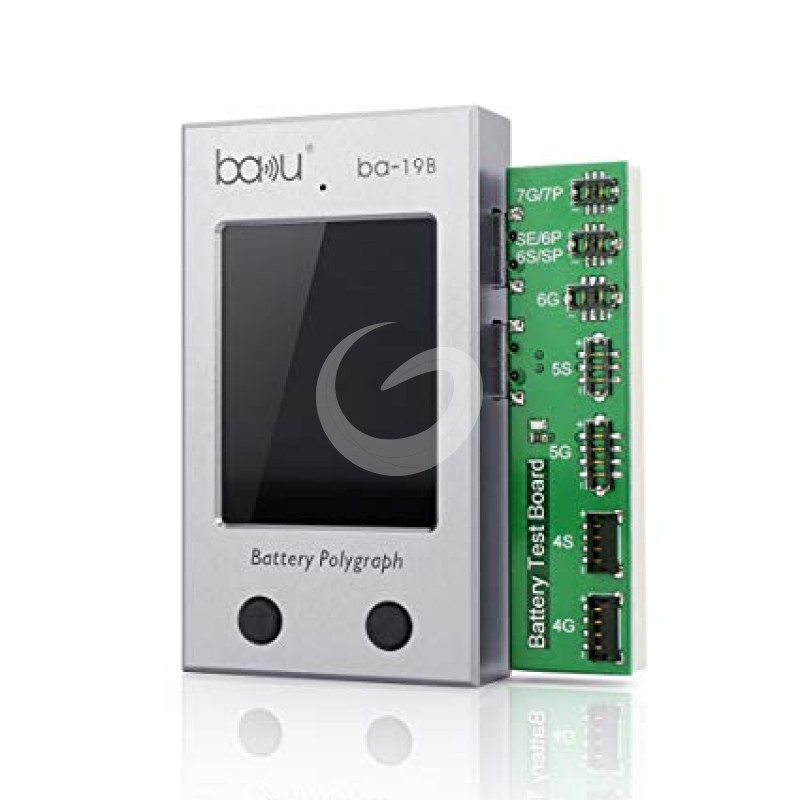

ba-19A built-in battery, ba-19B no built-in battery
Automatically read the battery information, the battery a key clear, check the battery cycle, the battery a key activation,
support Apple full range of battery charging, discharge test; battery design capacity detection,
battery actual capacity detection, full capacity test, battery Efficiency testing;
Battery cell manufacturer testing, production date detection, battery serial number, chip type detection, battery current, battery temperature detection and so on.

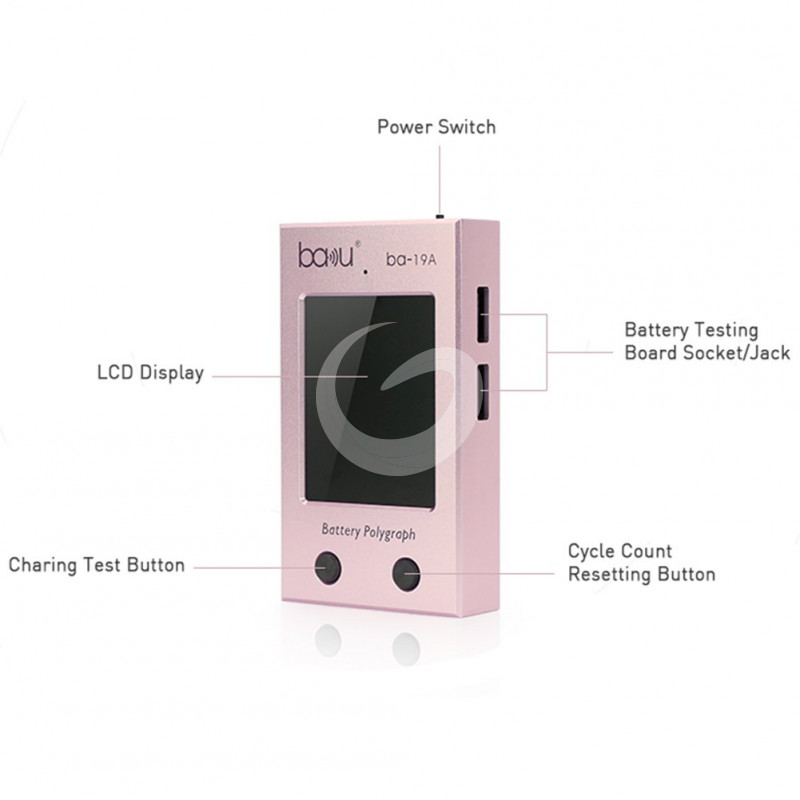

1. The default language for power on is Chinese, if you need to switch English: press and hold the left key before power on,
press the power button, the interface lights up,
Release the left button, the language selection appears, press the right button to select English, the language switching is successful.
2. Test: Connect the test board, connect the corresponding interface according to the battery model, and get the battery-related parameters.
1. When the battery is connected, the language cannot be switched. Before switching the language, please remove the battery.
2. Make sure the instrument is connected to the battery before use.
3. Please use the testing equipment at room temperature.
