JTAG Adapter A B C D E F

JTAG Adapter A B C D E F was specially designed for Alcatel, AMOI, HTC, Huawei, KTFT Ever, LG, Samsung, Siemens, Sony Ericsson, Vodafone and ZTE cell phones Decoding, Repair and Service with Medusa Box service tool.

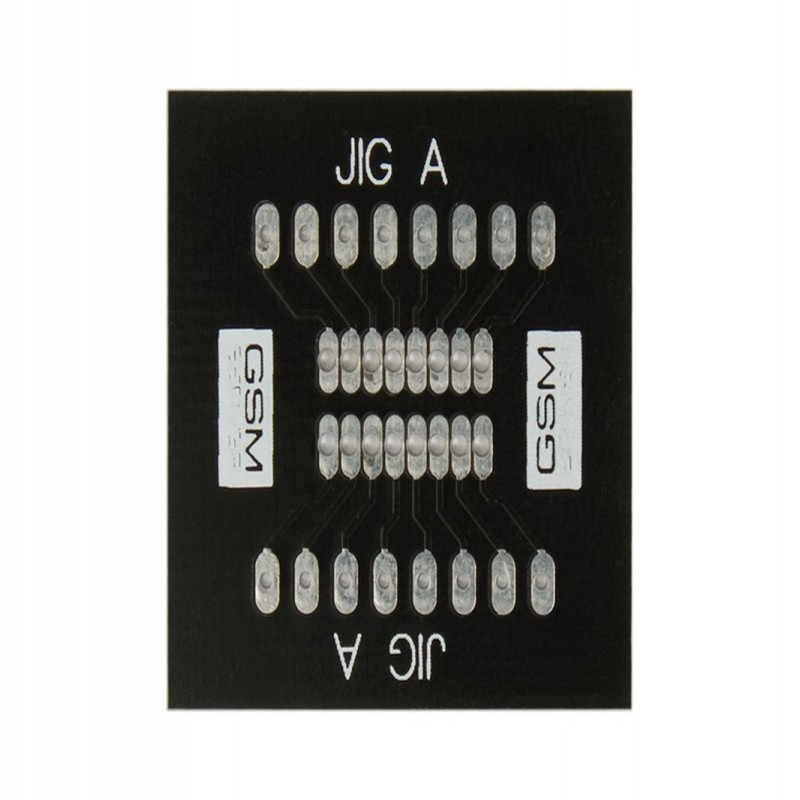

JTAG Adapter A

• Dimensions: 30 × 29 × 2 mm
• Step: 1.4 mm
• Hole diameter: 1 mm
• Row spacing: 4 mm

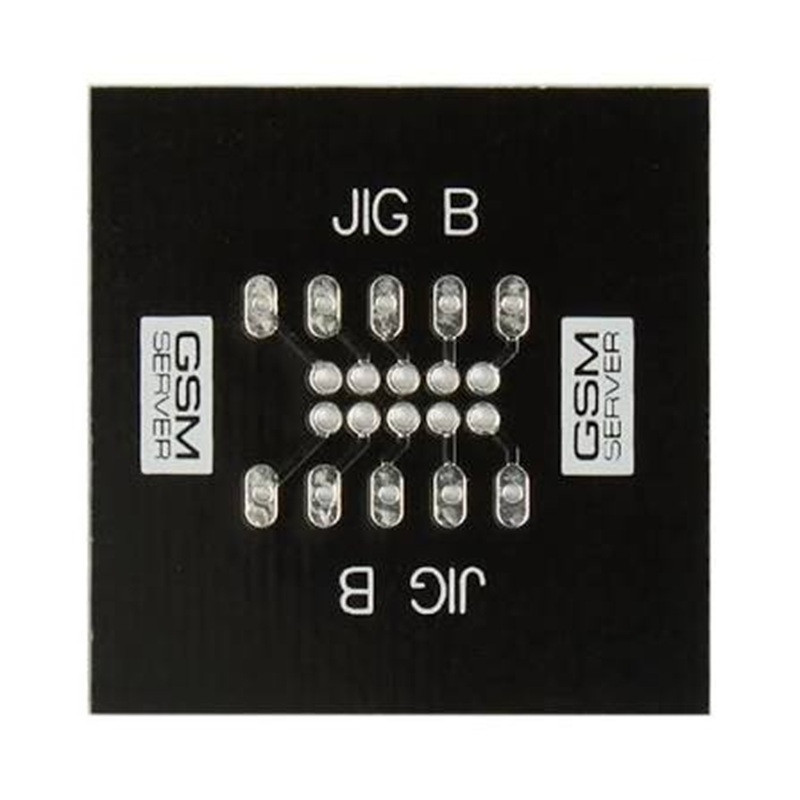

JTAG Adapter B

• Dimensions: 30 × 29 × 2 mm
• Step: 1.8 mm
• Hole diameter: 1 mm
• Row spacing: 2 mm

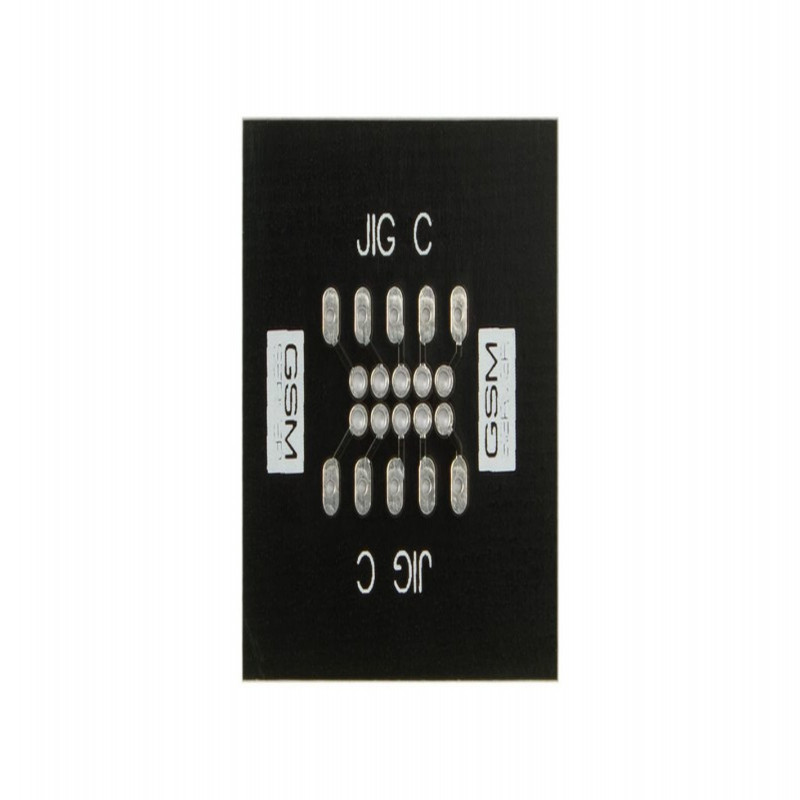

JTAG Adapter C

• Dimensions: 30 × 29 × 2 mm
• Step: 2 mm
• Hole diameter: 1 mm
• Row spacing: 2 mm

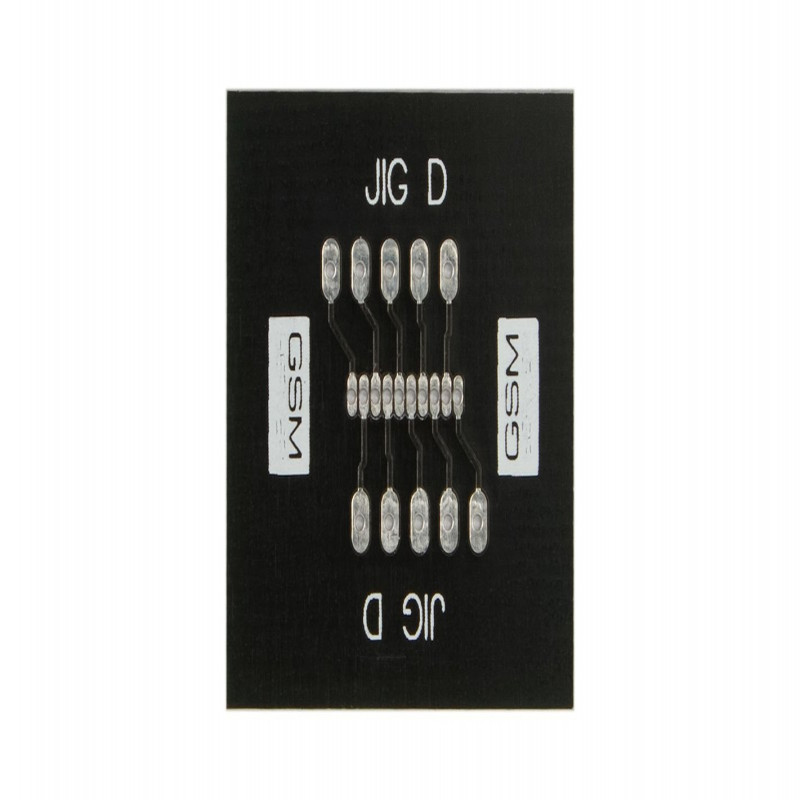

JTAG Adapter D

• Dimensions: 30 × 29 × 2 mm
• Step: 1 mm
• Hole diameter: 0.7 mm
• Single row

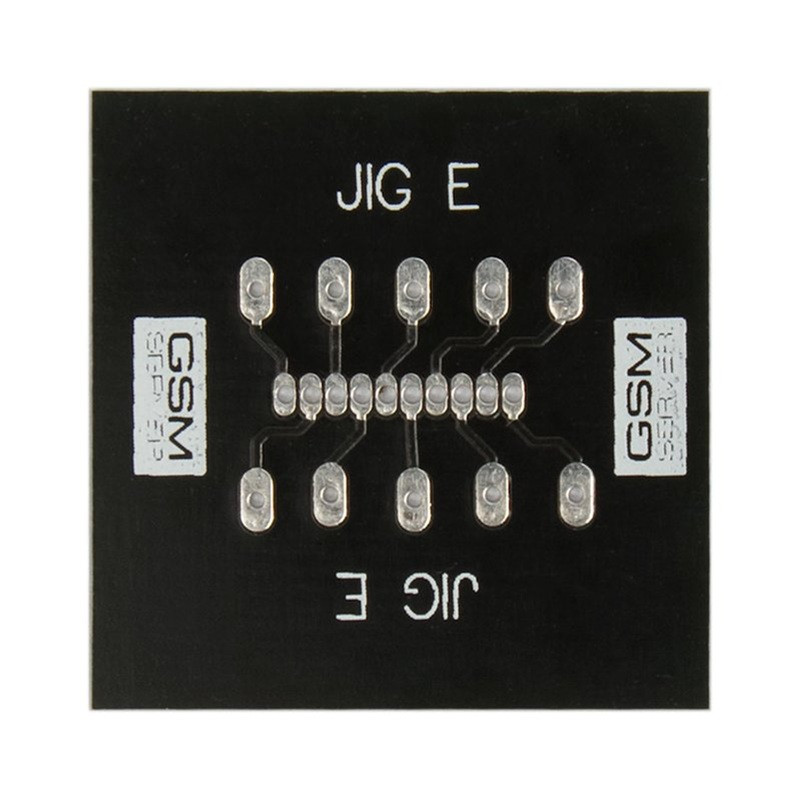

JTAG Adapter E

• Dimensions: 30 × 29 × 2 mm
• Step: 1.25 mm
• Hole diameter: 0.7 mm
• Single row

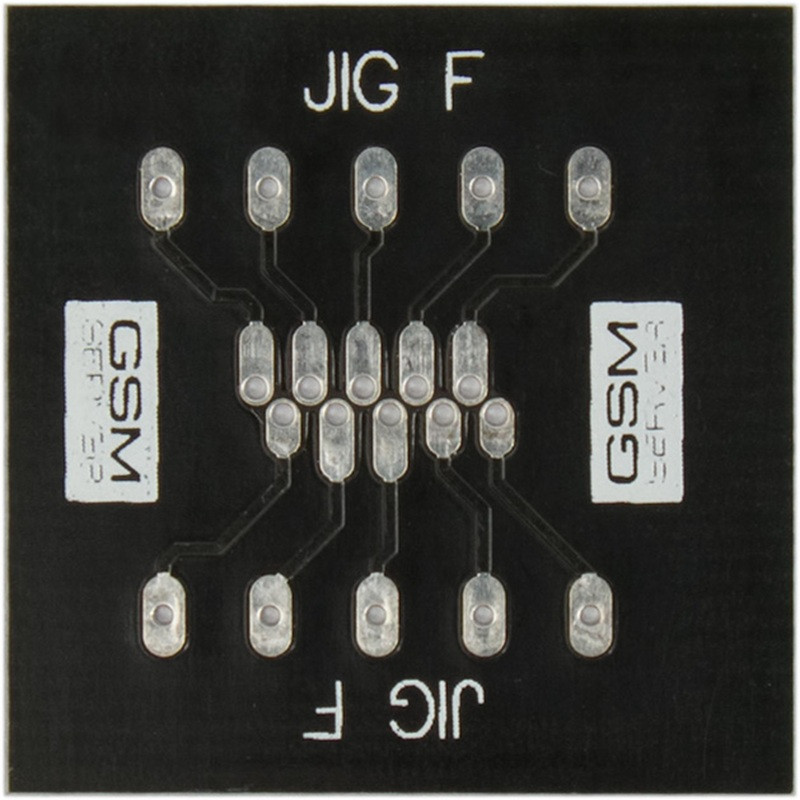

JTAG Adapter F

• Dmensions: 30 × 29 × 2 mm
• Step: 2 mm
• Hole diameter: 0.7 mm
• Rows spacing: 1 mm
• Checkers pattern

Package include :
1 x jtag adapter A
1 x jtag adapter B
1 x jtag adapter C
1 x jtag adapter D
1 x jtag adapter E
1 x jtag adapter F
