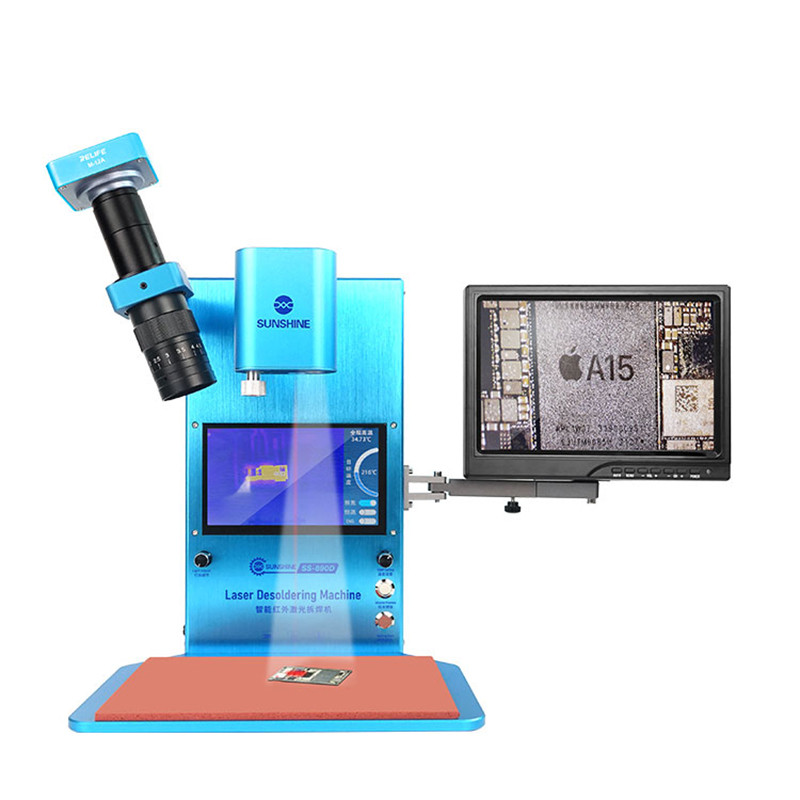

Sunshine SS-890D Intelligent Infrared Laser Desoldering Machine for Phone Motherboard Chip IC Repair

Features:

• Support constant temperature setting/Red light preview/Visible light detection/Footswitch

• Disassembly and installation of hard disk/Glue removal/Disassembly and assembly of IC/Disassembling the CPU

• Support desoldering all models/brands of mobile phone motherboards and other products with motherboards, etc

• Infrared cameras can be used to easily detect abnormal areas of the motherboard, and visible light cameras can be used to extract the outline of the motherboard, flexibly magnify the details of the motherboard, and quickly and accurately identify problems

• It is not only a short-circuit rapid diagnosis instrument, but also an electron microscope, and it is also a desoldering station, snapshot/video, temperature alarm can be detected, the temperature can be manually adjusted according to the situation, and the desoldering motherboard can monitor whether the temperature reaches the melting point

• Smart touch, sensitive and stable touch, fast measurement, easy to use

• Thermal imaging, precise constant temperature control, laser heating, the non-heating area does not affect, heating solder in space, easy to operate

• Using the infrared camera can easily detect the abnormal area of the mainboard, using the visible light camera to extract the outline of the mainboard, flexibly enlarge the details of the mainboard, and find out the problem quickly and accurately



Specification:

• Brand: Sunshine

• Product name: Intelligent Infrared Laser Desoldering Machine

• Model: SS-890D

• Operating voltage: 110V/220V

• Product power: 100W

• Laser power: 30W

• Heating temperature: Laser Heating

• Microscope: HD

• Pixel: 4800W

• Power supply: DC 12V

• Gain: 21-135/42-270

• Frame rate: 60/s

• Output method: HDMI

• Thermal Imaging display: 7 Inch

• Microscope display: 10 Inch

• Product Size: 290*290*340mm

• Package Size: 425*355*325mm

• Net Weight: About 6.2kg

• Gross Weight: About 8.4kg



Package includes:

• 1 x Laser Disassembly Welding Machine

• 1 x HD Camera

• 1 x 10-inch Display Screen
