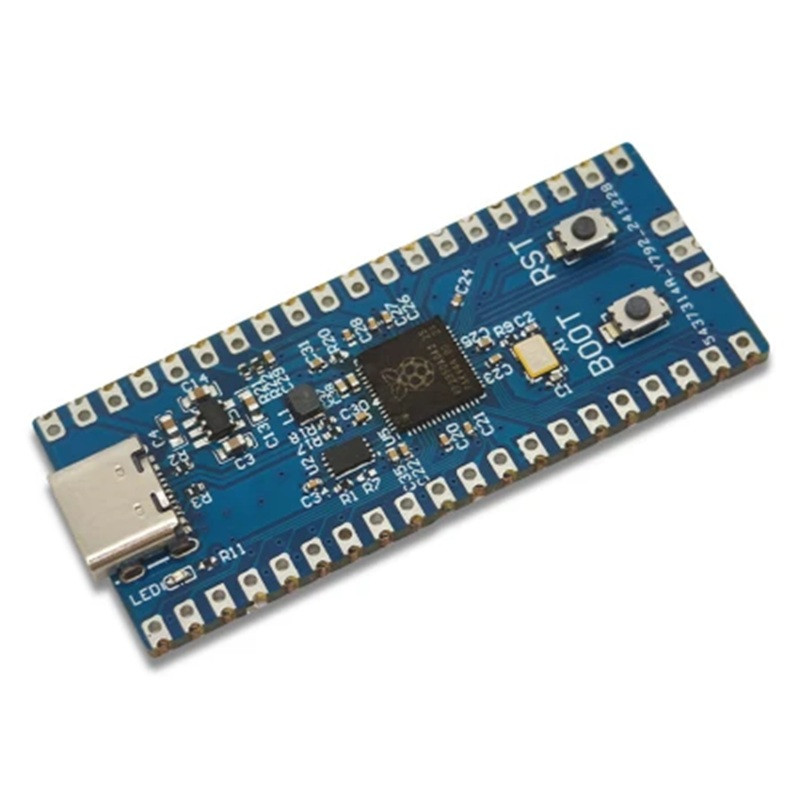

Raspberry Pi Pico 2-RP2350 Mini Development Board Supports C / C++ / MicroPython / Arduino

Overview:
The RP2350 development board is developed based on the RP2350A and comes with a small-sized FLASH-W25Q16JVUXIQ onboard. It uses a Type-C port, with all IO ports leading out and BOOT and RST keys onboard, making it easy for users to debug. It supports various development environments such as C, C++, MicroPython, Arduino, etc. The module can be recognized as a large capacity storage device through USB for program burning.

Features:

• Equipped with RP2350A main control chip, full pin IO output, matched with BOOT and RST debugging buttons, debugging operation is convenient and efficient.

• Compatible with various development environments such as C, C++, and MicroPython, USB direct connection to a computer can be recognized as high-capacity storage, and program burning can be completed by copying files.

• Standard Type-C power communication interface, built-in dedicated voltage reduction and stabilization module, equipped with GPO25 controllable LED indicator light, intuitive status, stable and universal wiring.

• Reserve independent Debug interfaces and complete hardware debugging channels to meet the needs of deep development such as program debugging and low-level development.

• Built with half hole technology, it has a compact and lightweight appearance, can be embedded and integrated, and is suitable for secondary development of various intelligent devices.

Specifications:

• Main control chip: RP2350A (LQFN-60 package)

• Onboard storage: W25Q16JVUXIQ small FLASH chip

• Interface: Type-C interface

• Circuit configuration: Built in voltage reduction and stabilization module

• Peripheral indicator light: GPO25 controllable LED indicator light

• Function buttons: BOOT start button, RESET reset button

• Expansion interface: fully exported GPIO port, independent Debug port

• Product size: 51mm * 21mm (there may be slight errors in manual measurement, please refer to the actual product)

• Burning method: Connect the USB to the computer and recognize it as a large capacity storage device. Copy the program files directly and burn them

• Hardware debugging: Equipped with dedicated buttons and Debug port, convenient for program debugging and low-level development

Product includes:

• 1 x Development Board
