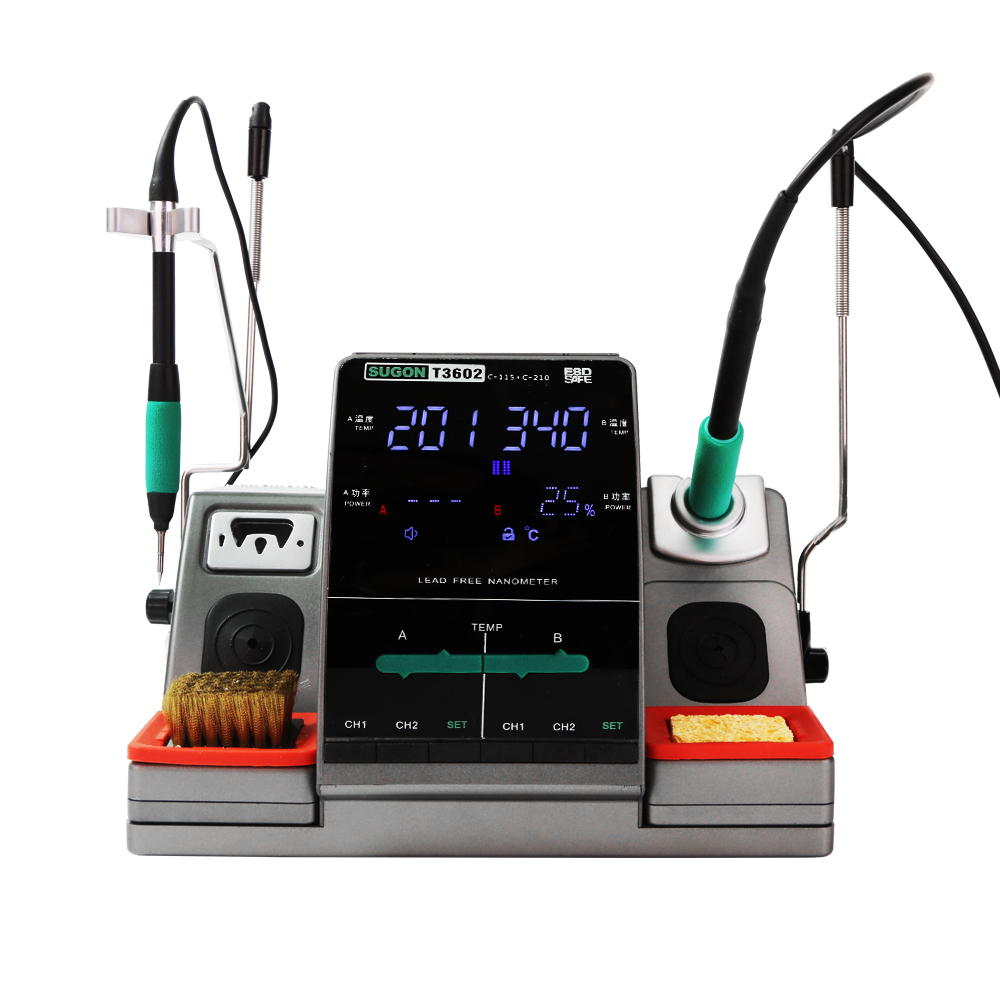

SUGON T3602 Soldering Station JBC C115 C210 Double Station Welding Rework Station For Cell-Phone PCB SMD IC Repair Solder Tools

  • (0) Review

2 in 1 Soldering station LCD Digital Display Welding Rework Station Soldering Iron Kit JBC C115 C210 (6 pcs JBC) for SUGON T3602 Features: Model: SUGON T3602 Power Consumption: 240W Input Voltage: AC 110V / AC 220V 50/60Hz Range of Temperature: Decide


Voltage:

  • $479.08
  • Quantity Price
    1- 8 $479.08

Product is In Stock

Quantity

  • Add to Wishlist

Categories: PRODUCT CATEGORIES

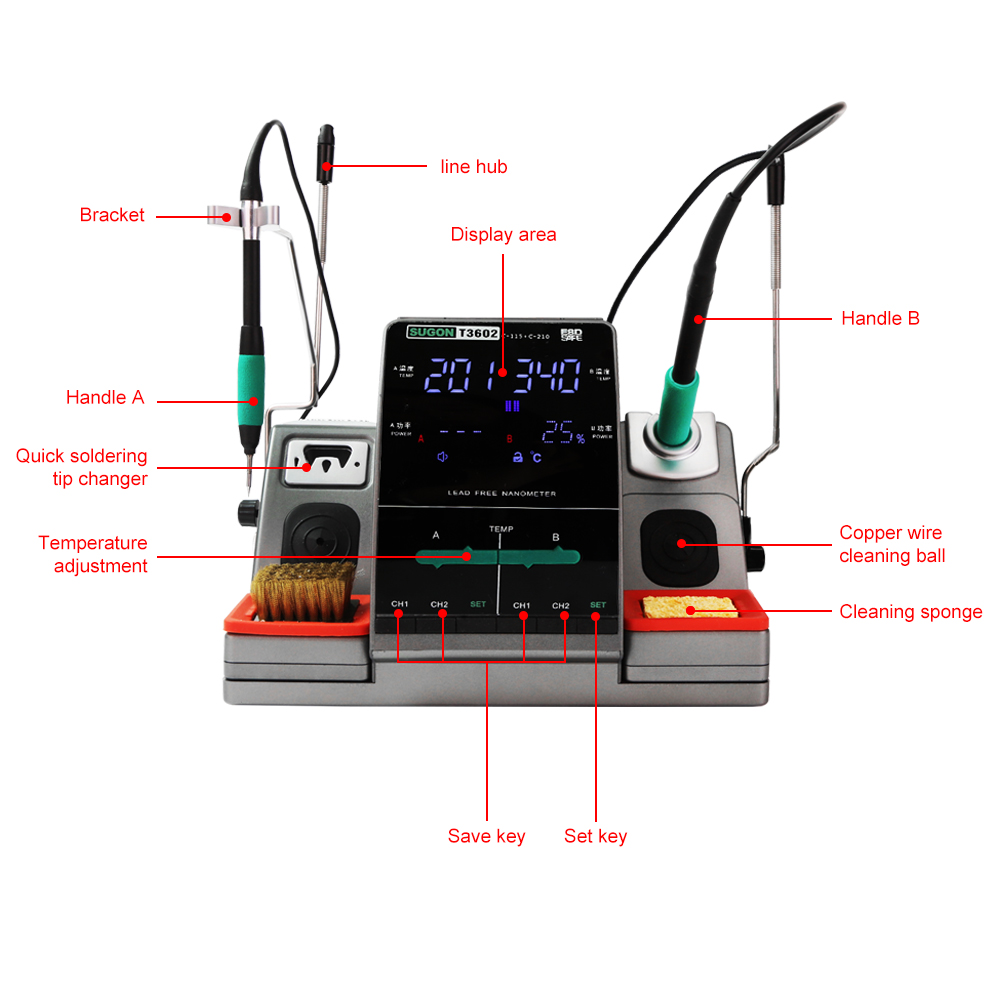

2 in 1 Soldering station LCD Digital Display Welding Rework Station Soldering Iron Kit JBC C115 C210 (6 pcs JBC) for SUGON T3602

Features:

Model: SUGON T3602

Power Consumption: 240W

Input Voltage: AC 110V / AC 220V 50/60Hz

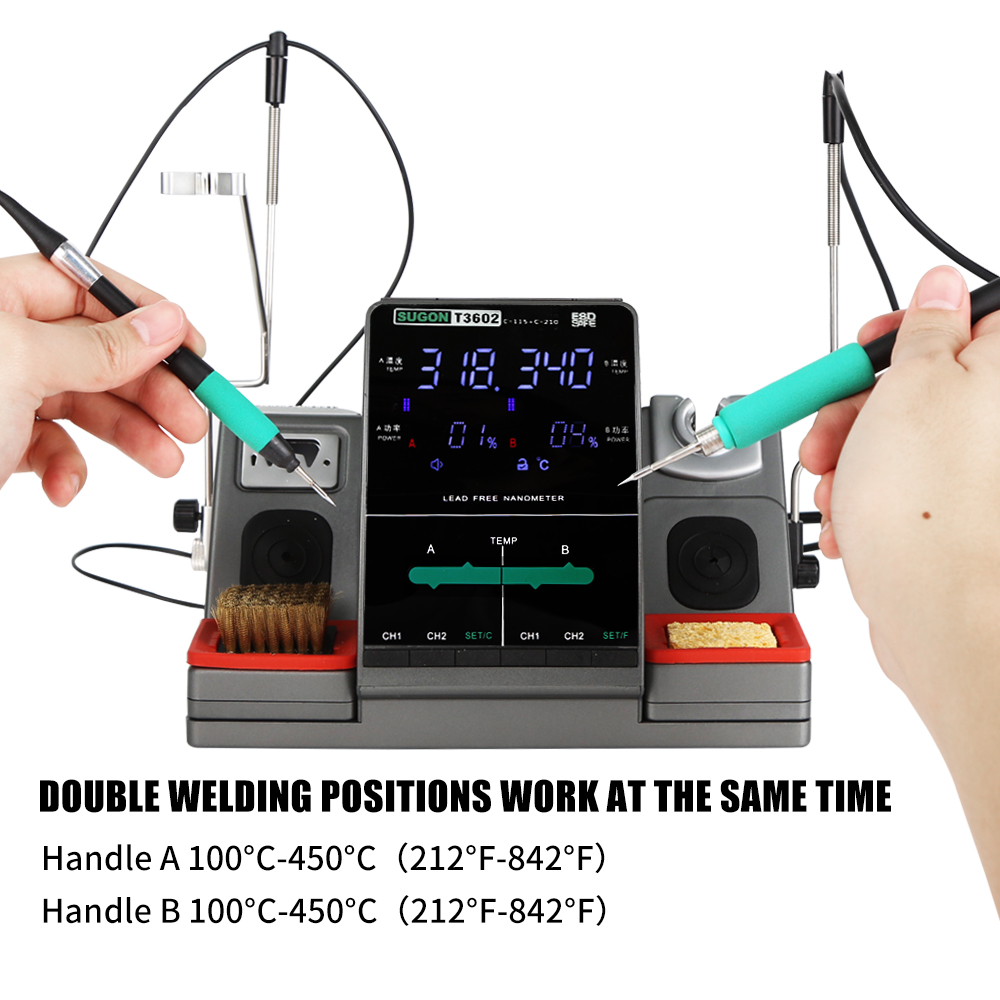

Range of Temperature: Decide by working mode(200℃-450℃ / 212°F-842°F)

Temperature Stability: ±2℃/Without air flow and no load

Tip to Ground Resistance: <1Ω(DC)

Tip to Ground Potential: <25mV(True RMS)

Package includes:
1 x SUGON T3602 Double Soldering Station
1 x Power Cable
6 x Iron Tips  (JBC C115-101, JBC C115-112, JBC C115-105, JBC C210-020, JBC C210-002, JBC C210-018)

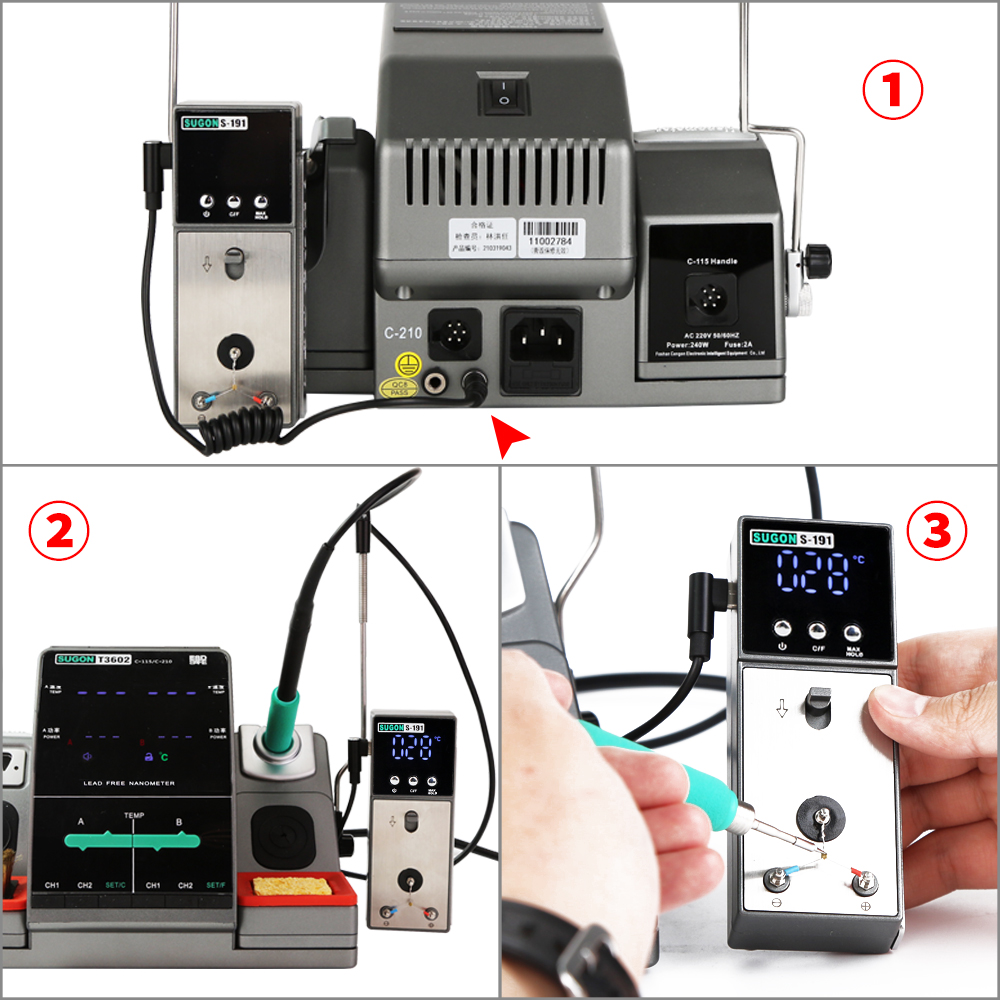

  1. In the working state, long press the "SET" key in A/B area to enter the temperature calibration setting state interface.
  2. Press "▲▼" to adjust and correct the temperature. After setting, press the "SET" key again to save and exit the temperature calibration function, and enter the working state.

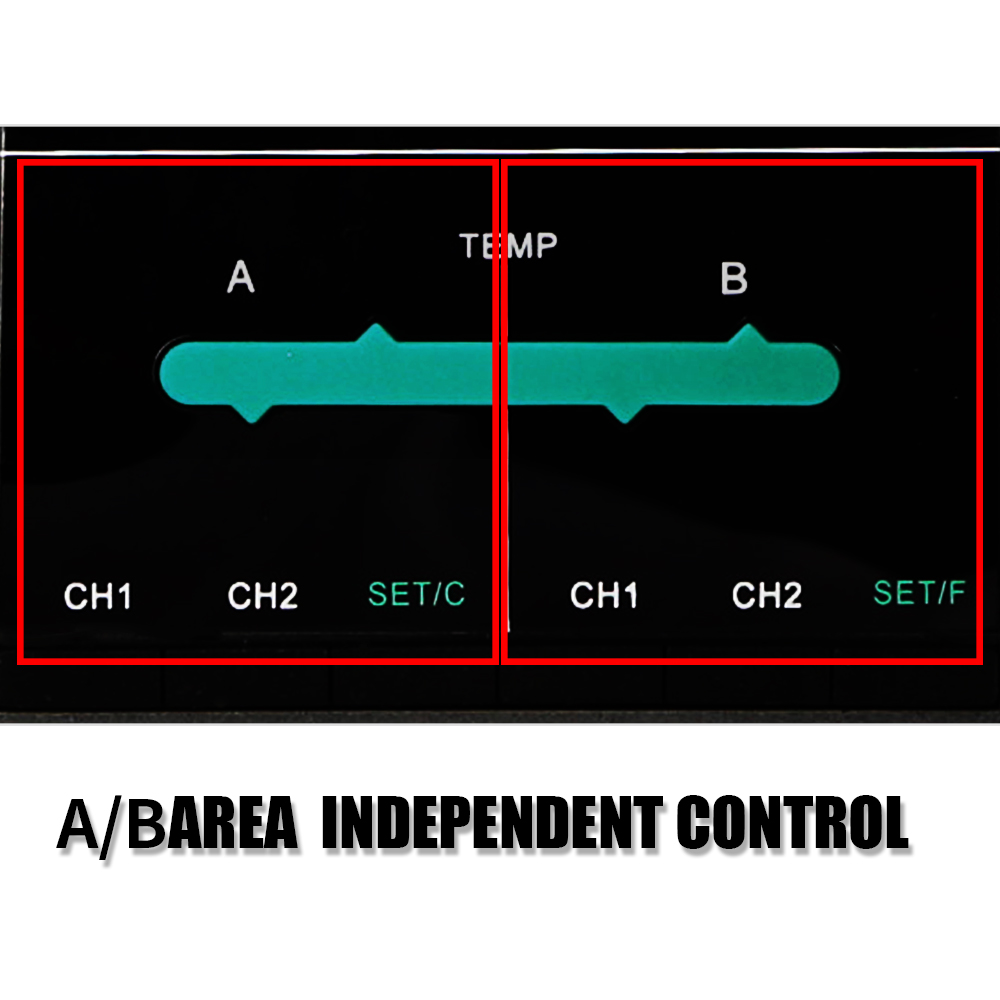

Note: A soldering iron corresponds to A "SET" key, and B soldering iron corresponds to B "SET" key.





2 in 1 Soldering station LCD Digital Display Welding Rework Station Soldering Iron Kit JBC C115 C210 (6 pcs JBC) for SUGON T3602

Features:

Model: SUGON T3602

Power Consumption: 240W

Input Voltage: AC 110V / AC 220V 50/60Hz

Range of Temperature: Decide by working mode(200℃-450℃ / 212°F-842°F)

Temperature Stability: ±2℃/Without air flow and no load

Tip to Ground Resistance: <1Ω(DC)

Tip to Ground Potential: <25mV(True RMS)
