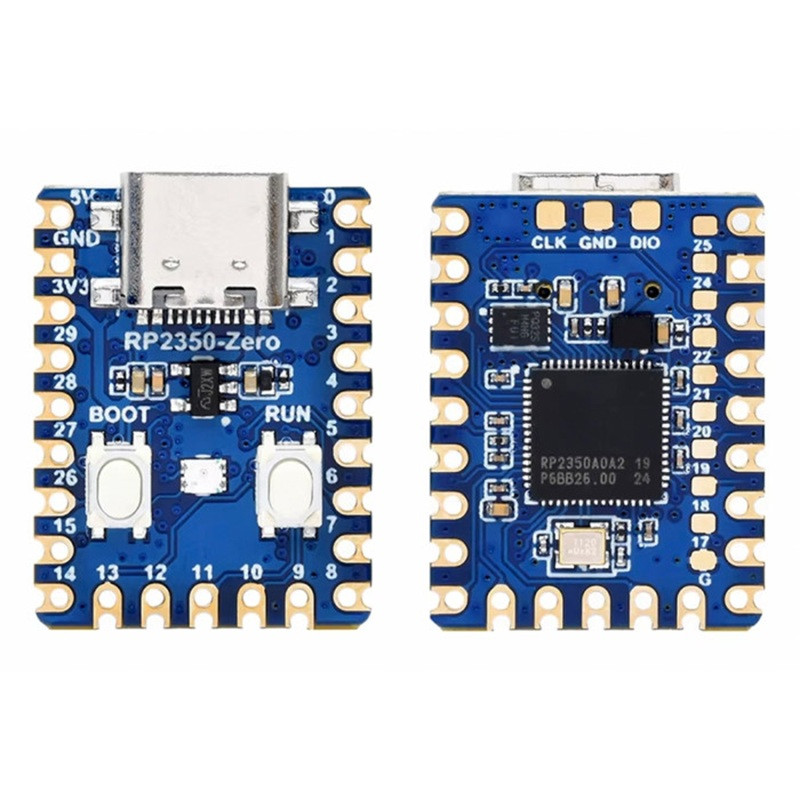

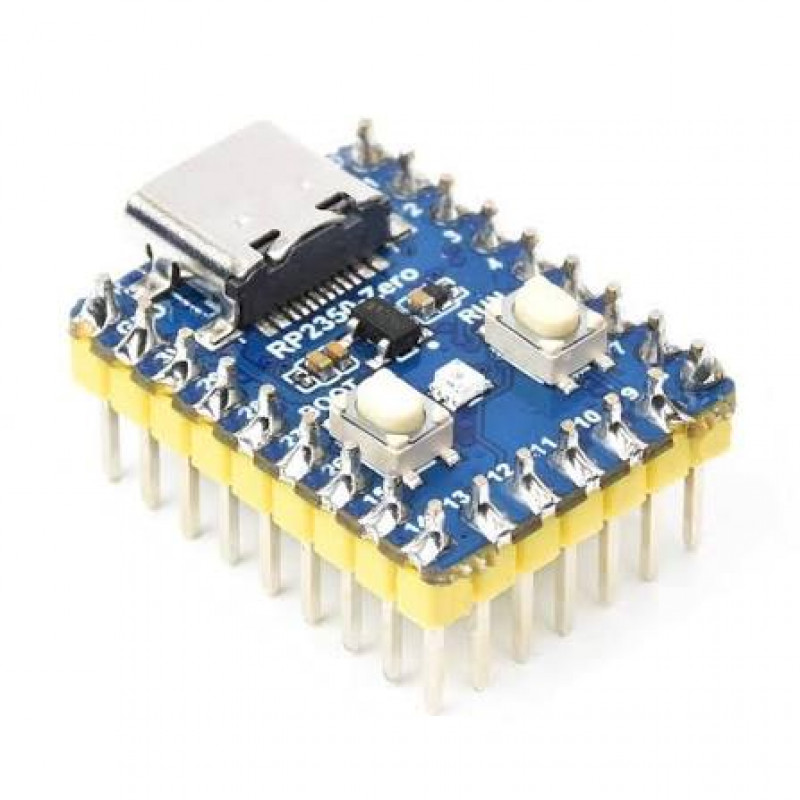

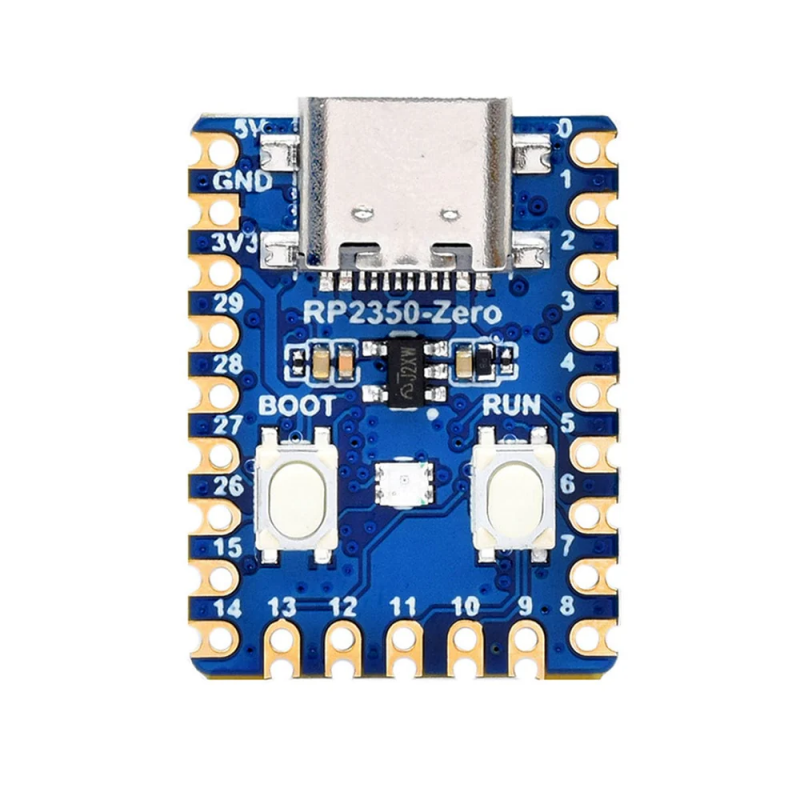

RP2350-Zero Mini Development Board Equipped with Raspberry Pi RP2350A Microcontroller Chip

Features:

• Based on the RP2350A microcontroller core chip, all unoccupied pins are led out in a very small board size.

• Adopting a half-hole process, it can be welded onto custom boards.

• Adopting a Type-C interface, keeping up with the trend of the times, there is no need to worry about forward and backward insertion.

• Unique dual core and dual architecture, equipped with dual core processors, with a clock operating frequency of up to 150MHz.

• Supports C/C++, MicroPython comes with a comprehensive SDK and open-source tutorials, making it easy to get started and quickly embed into applications.

Specifications:

• Adopting RP2350A microcontroller chip

• Unique dual-core and dual architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, with a clock operating frequency of up to 150MHz

• Built-in 520KB SRAM and 4MB on-chip Flash

• Adopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertion

• Stamp hole design, can be directly welded and integrated into the user's self-designed base plate

• Supports USB 1.1 hosts and devices

• Supports low-power sleep and sleep mode

• Can be recognized as a large-capacity storage device through USB for drag-and-drop downloads

• 29 GPIO pins of RP2350A can be led out (20 can be led out through pin headers; the rest can only be soldered out)

• 2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, 24 controllable PWM channels

• Accurate on-chip clock and timer

• Built-in temperature sensor

• On-chip accelerated floating-point library

• 12 programmable I/O (PIO) state machines for custom peripheral support

• Voltage regulator chip LDO 800mA

• Appearance size 23.5mm * 18mm

Package includes:

• 1 x Development Board
