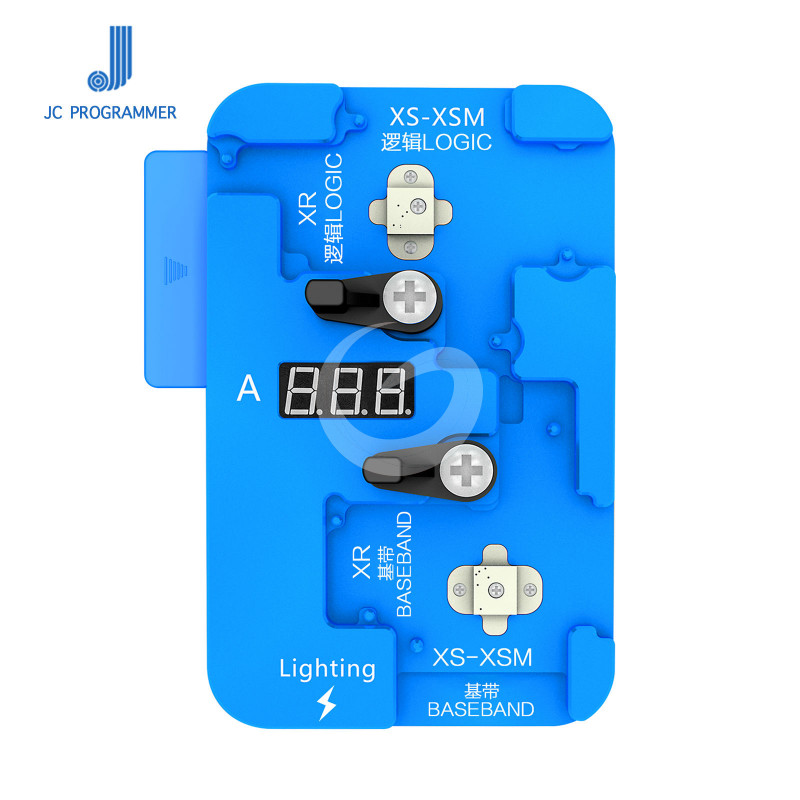

BLE-XS JC Logic Baseband EEPROM Chip Non-removal Module for iPhone XR/XS/XS MAX

JC Logic/Baseband EEPROM Chip Non-removal Module for iPhone XR/XS/XS MAX

Bring you the ultimate experience for logic/baseband chip data read, backup and burn into new replacement logic board

Pro1000S + XS-XSM offline mode operation

Offline mode operations,

1.Connect module with pro1000s
2.Place your logic board to the m module properly
3.Click the read button, data will be detected by pro1000s, click save button to backup
4.Replace the logic board, lock the burn button, data will be write to the new replacement logic board

Online mode operations

1.Connect BLE-XS Module with PC lightning cable
2.running JC repair application on PC, switch to chip repair on top section
3.Click read button, data will be read
4.Replace the new replacement logic board, click burn button, date will be write to thee new replacement logic board

Features,

1. Online offline dual mode supported
2. Intel baseband/ Qualcomm baseband/logic chip supported
3. Risk free non-removal operations
4. Data Read/write/backup/edit/burn supported
5. OLED display real time indicate voltage of logic board
6. XR/XS/XS-MAX Supported

Package include:

1 x JC  Logic/Baseband EEPROM Chip Non-removal Module for iPhone XR/XS/XS MAX
1x USB lighting cable
