This is an upgrade kit for the owners of Medusa Box or Octoplus Box (with JTAG activation).
Please be aware, the following kit does NOT include smart card and activation.

Medusa PRO Box - Features:

Medusa PRO - Hardware Features:

1. Fast USB 2.0 high-speed hardware

2. JTAG support for ARMv5, ARMv6, ARMv7

3. Up to 24MHz JTAG speed

4. Transfer speed via JTAG interface up to 1 MB/s

5. eMMC support up to MMC 5.0 standard

6. 1-bit and 4-bit MMC bus modes are supported

7. The standard 20-pin JTAG interface

8. Built-in JTAG PIN finder

9. Built-in USB CCID smart card reader

10. Built-in RJ45 Multiport, Unibox capable

Medusa PRO - Software Features:

1. Full-featured professional-grade Medusa PRO software
   The software fully supports all operations (Read, Write and Edit) with any required memory sections through JTAG, USB, and MMC interfaces.

2. Easy and smart Graphical User Interface (GUI), suitable for beginners and for experts

3. Fast repair of target device with Smart-Repair-Files (SRF)

4. SRF contains partition data and other necessary data (help files and diagrams)

5. Data in SRF is compressed (less to download, quicker to work)

6. Built-in Partition Manager
   Now you can edit and save required for your work partitions, this leads to a convenient and easy way to service devices. In addition, with Partition Manager, you may open Full Flash file in binary format, edit it and write it back to the device.

7. Simple per-partition operations (Read, Write, Erase, Edit) of the target storage device

8. Built-in Smart-Repair-File Constructor with Partition Manager for creating custom SRFs
   SRF file could be taken from the device or read out from Full Flash file in binary format. This feature allows the user (without developer’s assistance) add devices to the list of supported models, which are not officially supported yet. User will be allowed to upload that custom SRF file into a separate section of Support Zone for further analysis by developers. If custom SRF file would be recognized as a legitimate and correct, name (or nickname) of the author will be presented in the following update. Thus, the user has been given the opportunity to participate in the development of Medusa PRO and became known in certain circles.

9. Built-in Download manager
   Allows you to download files directly from the software.

10. NAND, OneNAND, NOR and eMMC storage devices are supported via JTAG interface

11. NAND, OneNAND, and eMMC storage devices are supported via USB interface

12. eMMC storage devices are supported via MMC interface

13. Up to 1 MB/s transfer speed via JTAG interface *

14. Up to 6 MB/s transfer speed via MMC interface with 4-bit bus *

15. Up to 2.2 MB/s transfer speed via MMC interface with 1-bit bus *

16. Windows 10 compatible software

* All measurements were done on ASUS M5A97 R2 motherboard with AMD FX-8370 CPU and with Medusa PRO Box connected to USB 3.0 port, located directly on the motherboard.

• Comparison Table

  Hardware	Medusa Pro	Medusa
  USB 2.0 High-speed	+	USB 2.0
  JTAG support for ARMv5, ARMv6, ARMv7	+	+
  Up to 24MHz JTAG speed	+	12 MHz
  eMMC support up to MMC 5.0 standard	+	-
  1-bit and 4-bit MMC bus modes are supported	+	-
  Standard 20-pin JTAG interface	+	RJ50
  Transfer speed via JTAG interface, Up to…	1 MB/s	225 KB/s
  Transfer speed via MMC interface with 4-bit bus, Up to…	6 MB/S	-
  Transfer speed via MMC interface with 1-bit bus, Up to…	2.2 MB/s	-
  USB CCID Smart Card Reader	+	-
  RJ45 Multiport, Unibox Capable	+	-
  Software	Medusa Pro	Medusa
  Partition Manager	+	-
  SRF Constructor	+	-
  JTAG PIN finder	+	-
  Built-in C scripting language for advanced users	upcoming feature	-

  To be able to purchase this product, you need to provide us with serial number of your Octopus Box or Medusa Box.

• Package includes:
  1 x Medusa Pro (box only, without cards)
  1 x Micro UART cable (with 530K resistor) for Samsung C3303K

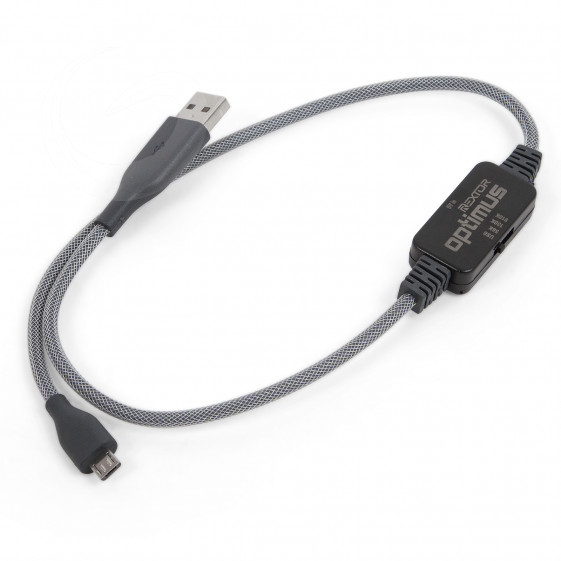

  1 x Optimus cable

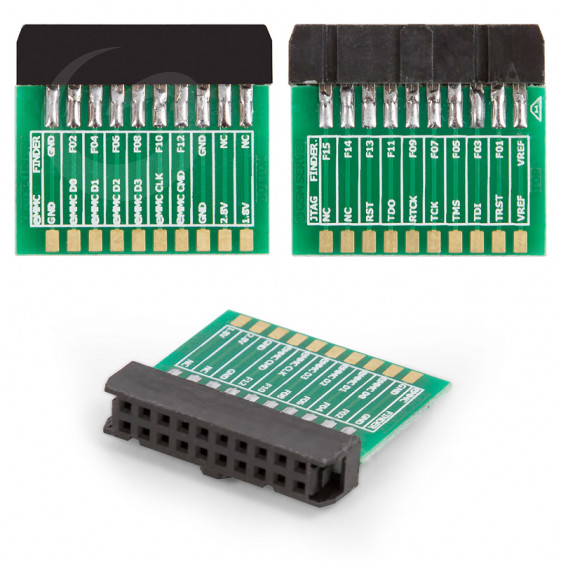

  1 x Medusa Pro JIG Adapter

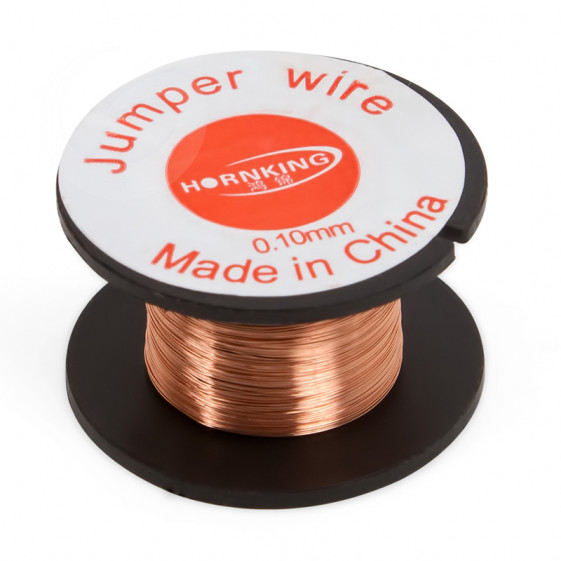

  1 x Copper wire 0.1 mm
  1 x USB A-B cable
